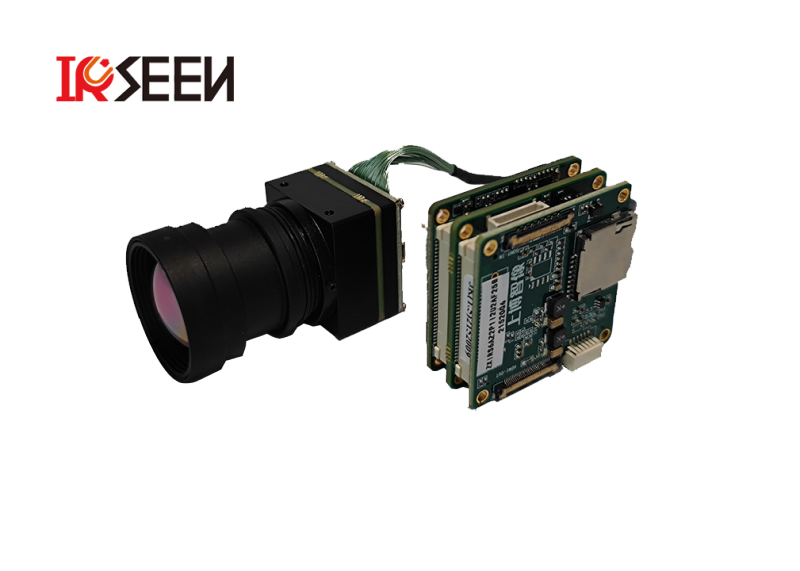

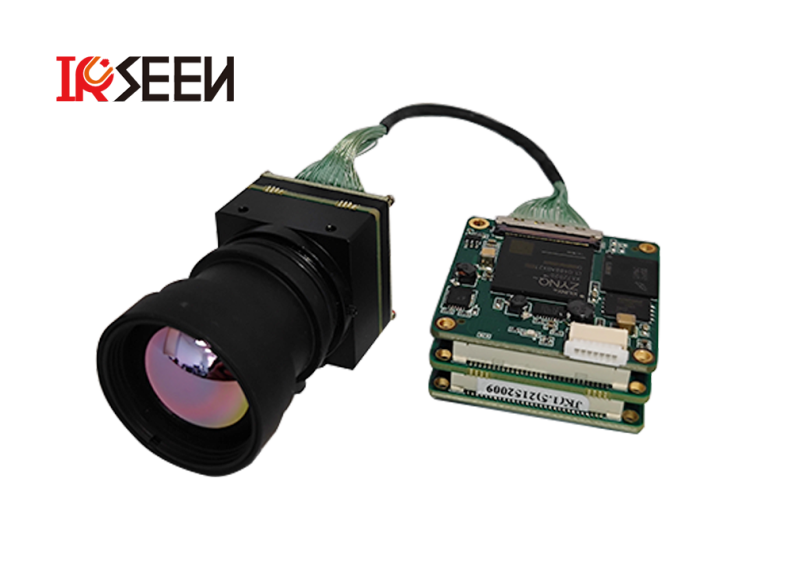

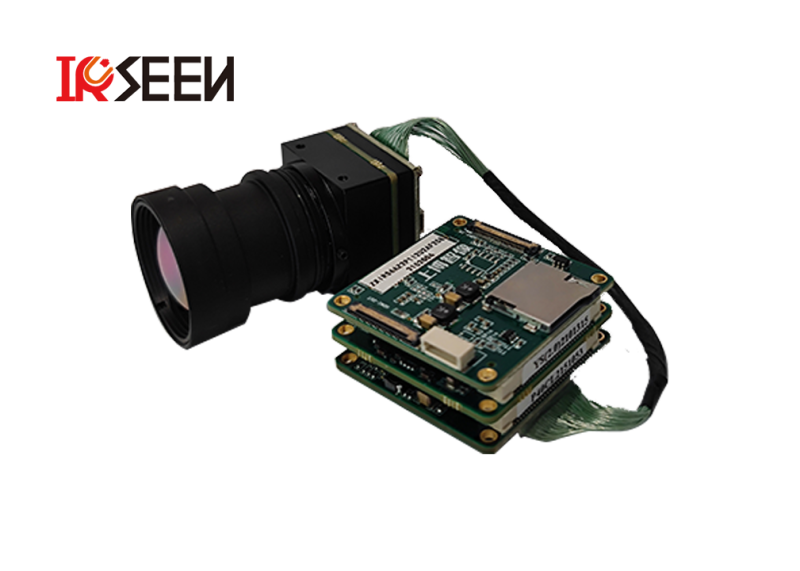

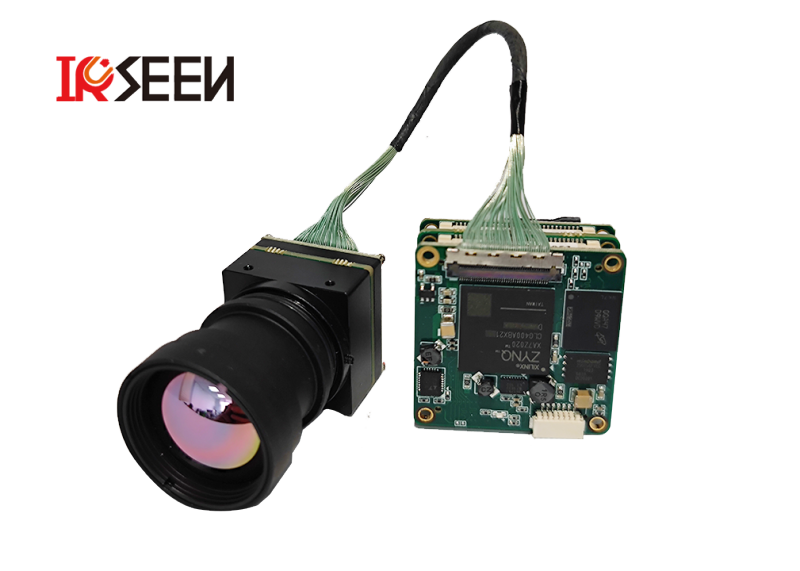

25mm small lens Thermal Camera

(Model# S2K-F)
HD LVDS-HDMI Thermal Camera is specially designed for UAV or gimbal camera manufacturers who have dual-light imaging requirement for their gimbal cameras.

LVDS is the video format for Sony HD 7520 series and Tamron cameras, and the thermal camera supports LVDS video input as well as HDMI micro and Ethernet video output that it can display EO and IR images at the same time (picture in picture display).

In addition, it has target tracking function workable in either display mode that makes it suitable for surveillance, monitoring, border defence, traffic management etc.

  • IR SEEN
  • China
  • 7 working days
  • 300
  • Information
  • Video
  • Download

Product highlights:



1. Integrated Video Tracking

2. High image quality and scene adaptability

3. No shutter (NUC) technology

4. On-line temperature measurement, false color display

5. Support for external input video (picture-in-picture)

6. OSD interface display

7. Custom character overlays

8. Rich communication interfaces

9. Small size, low power consumption


Parameters


MODEL


S2K-F

Imaging index

Working format

Un-cooled 8μm~14μm

Resolution

640×480

Size of pixel

17μm

Emissivity correction

Emissivity0.01~1 adjustable

NETD

50mK@25℃)

MRTD

550mKunder characteristic frequency

Color palette

Black hot/white hot/pseudo color

Digital zoom

2X3X4X

Temperature measurement

Temperature bar with highest/lowest/center temperature spot

Measurement range

0~120

Tracking index

Data refresh rate

25HzIR/ as Sony corevisible light

Tracking velocity

± 32 pixels / frame

Target size

16x16128x128 pixels

Environmental adaptation

Working temperature

-40℃~60

Storage temperature

-40℃~65

Electrical interface

Communication

interface

TTL

Video Input

LVDS

Video Output

HDMI+Net

Video storage

The SD card stores JPEG images/h. 264, H265, and MP4 Video (32 gigabytes from the factory, up to 128 gigabytes)

Power input

DC 12V

Others

Weight

155g

Power consumption

4.6W (@25)



Dimensions


640*480 resolution thermal camera

LVDS video output

Team Service
Development integration
Company Style
Research & Development Center
Exhibition Activities
UAV Show 2017 Beijing
FAQ
What is NETD?
NETD is the noise equivalent temperature difference of the infrared camera, which is one of the main indicators of infrared detectors. NETD is an objective evaluation index for the sensitivity of a thermal imaging system and can be used to predict the detection distance of a small temperature difference point target. The NETD value of the ZXIR infrared camera is less than 50mk. The smaller the NET...more
