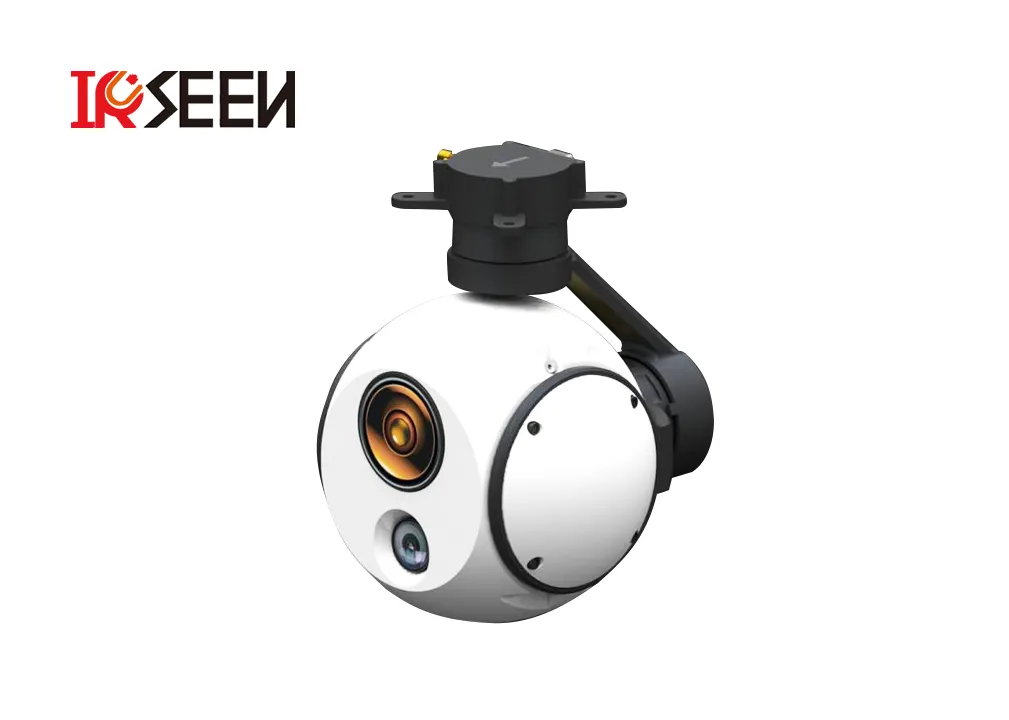

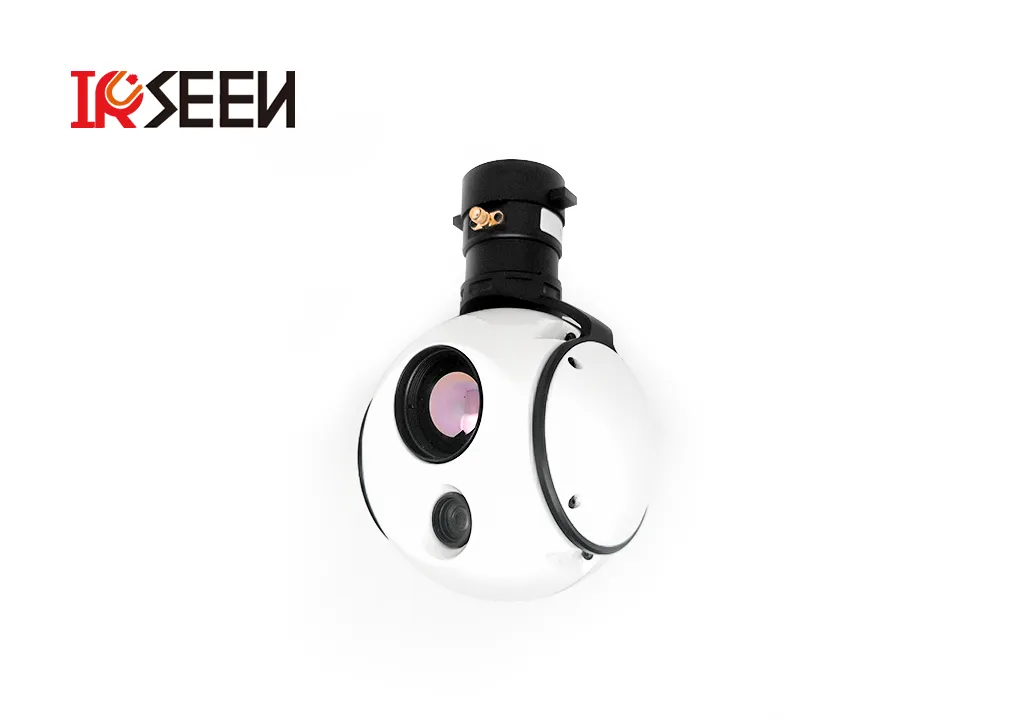

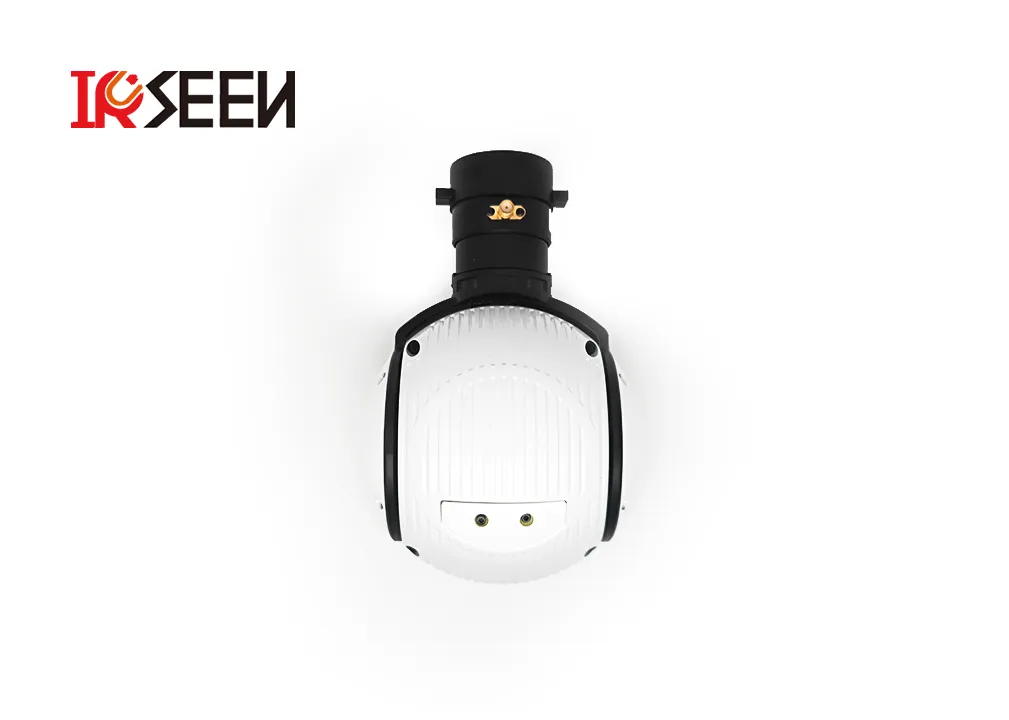

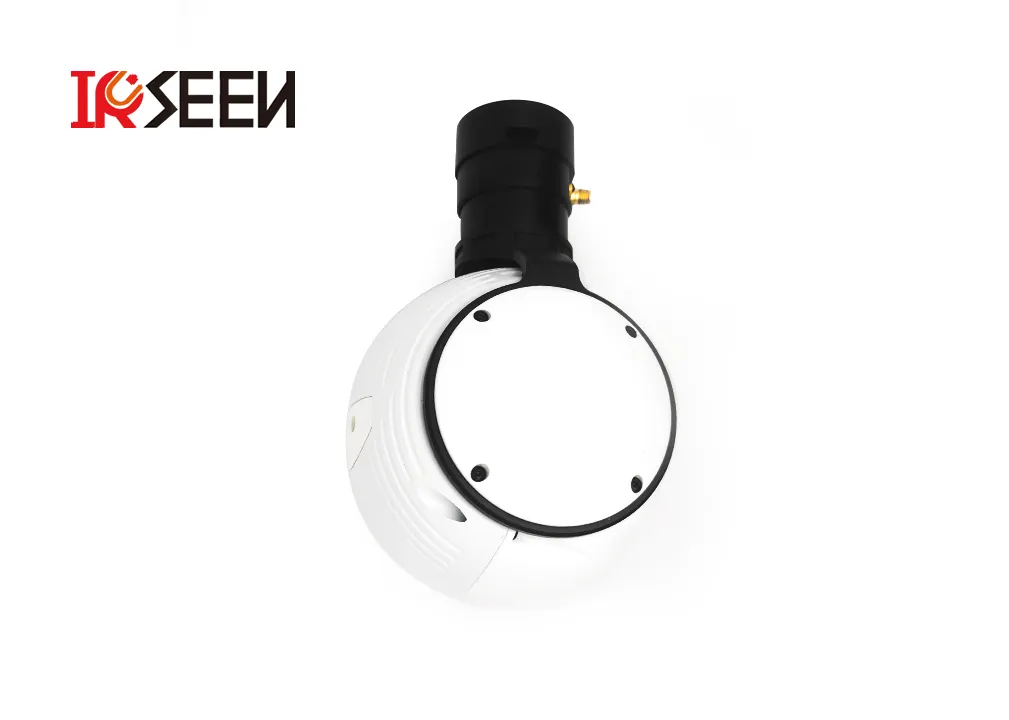

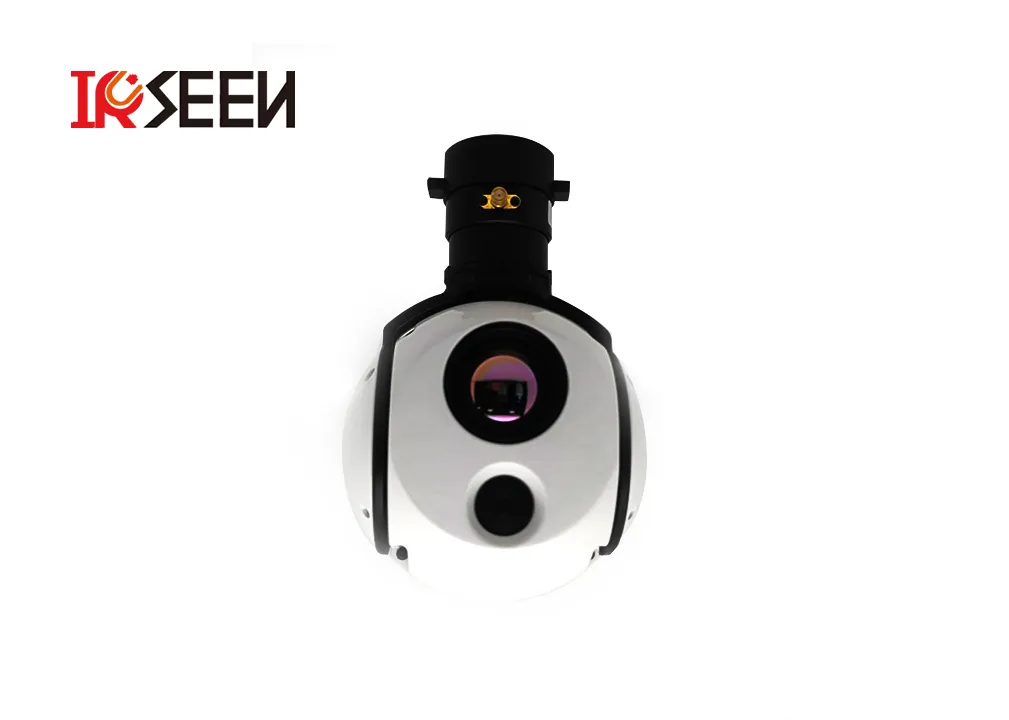

Triaxial dual light lightweight drone gimbal
(Model# FIV-I0)
The three axis dual light drone universal joint is an advanced multifunctional system designed specifically for drone applications. With its outstanding features and cutting-edge technology, it ensures high-definition imaging, excellent zoom ability, and precise target tracking. This professional grade universal joint is suitable for a wide range of applications, including monitoring, detection, pipeline inspection, etc. The universal joint system integrates a 10x optical zoom camera and a 35mm main lens thermal imager, achieving high-definition images and excellent automatic zoom and target tracking capabilities. The 10X optical zoom dual beam three axis lightweight universal joint maintains the positive direction of the image by adding an axis during rolling, resulting in better performance in image stability.
- IRSEEN
- Shenyang, China
- 20 working days
- 100 sets per month (Looking for distributors)
- Information
- Video
- Download
Product highlights:
1. Three light technology: This universal joint integrates a 10X optical zoom low illumination RGB camera and a fixed focal length non cooled 640 * 480 35mm main lens infrared camera. It allows for continuous zoom visible light imaging and fixed focus uncooled infrared imaging.
2. Target tracking: The three-axis dual light light light unmanned aerial vehicle Gimbal has advanced target tracking capabilities. It detects and tracks moving objects, ensuring that they are always at the center of the image.
3. Infrared temperature measurement (optional): To enhance functionality, this universal joint can be equipped with infrared temperature measurement function. This makes temperature readings accurate and suitable for various industrial applications.
4. Support video storage: The universal joint system allows for easy storage of videos, ensuring that you capture and save all important shots. It supports various storage options, providing flexibility and convenience.
5. Suitable for various aircraft: Whether you are using fixed wing, single rotor, or multi rotor aircraft, the three axis dual light drone Gimbal is compatible and can be seamlessly integrated. Its compact and lightweight design makes it easy to install and use on different types of aircraft.
Parameters
MODEL | FIV-101 | FIV-102 | |
System specification | System type | Gyro stability | |
Weight | 800 | 900g | |
Stable system | Platform type | Two-axis | Tri-axis |
Azimuth | 360°rotation | ||
pitch | -90°～+30° | ||
Roll | None | -45°～+45° | |
Maximum search angular velocity | ≥100°/s | ||
Stability accuracy | 0.1mrad(1°/2HZ) | ||
Angular position accuracy | ≤0.3° | ||
Electro Optical (10X) | Resolution and frame rate | 1920×1080 | |
FOV | 61°×36°～6.7°×3.8° | ||
Focus | f=4.7mm-47mm | ||
Infrared camera | Resolution and frame rate | 640*480 | |
Size of pixel | 12μm | ||
FOV | 12.5°×9.4° | ||
LEN | 35mm | ||
Tracking module | Frame rate | 60Hz | |
Tracking speed | ±48 Pixel/frame | ||
System external interface | Control | RS232、NET | |
Video output | NET | ||
Power supply | Power | 12～28V | |
Power consumption | Av≤15W，Max≤30W | ||
Environmental conditions | Operating temperature | -10℃～+50℃ | |
Storage temperature | -40℃～+60℃ | ||
Dimensions
FIV-101
FIV-102
How it works:
The three axis dual light lightweight unmanned aerial vehicle universal joint combines advanced camera technology and precise gimbal control, providing excellent imaging capabilities. The integrated camera can capture visible and infrared images, providing a comprehensive view of your surroundings. The target tracking function ensures that moving objects are always in focus, allowing you to closely detect and track them. With its lightweight and compact design, this universal joint can be easily installed on drones, providing stability, flexibility, and excellent performance.
Frequently asked questions:
Q: Can this universal joint be used with any drone?
A: Yes, the Gimbal is designed to be compatible with various types of aircraft, including fixed wing, single rotor, and multi rotor drones.
Q: What is the working range of the 10x optical zoom function?
A: The 10x optical zoom function allows you to capture detailed images even from afar. The exact operating range may vary depending on environmental conditions and other factors.
Q: Can I use this universal joint for industrial applications?
A: This universal joint has infrared temperature measurement function (optional) and is suitable for a wide range of industrial applications where temperature monitoring is crucial.
Q: Is the universal joint lightweight and easy to install?
A: Yes, the Gimbal design is lightweight and compact, making it easy to install and use on drones. Its compact structure ensures minimal impact on drone flight performance.
