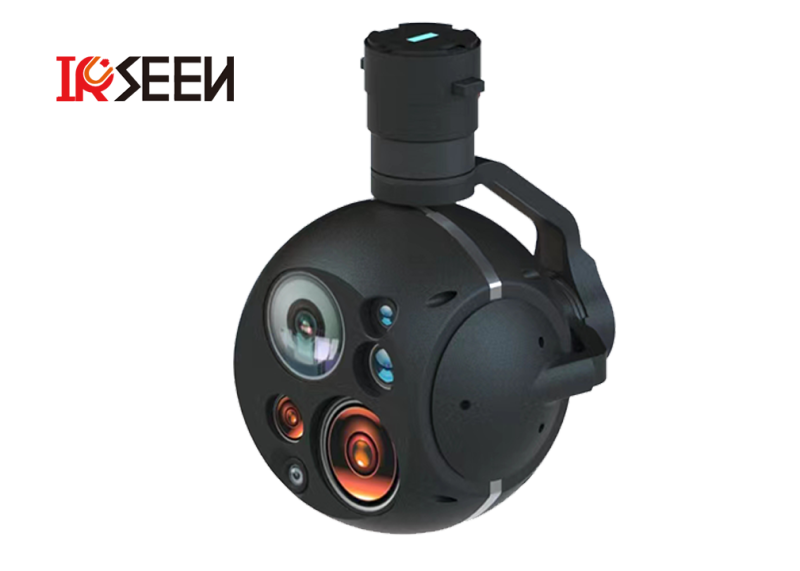

Double visible double infrared five light light gimbal
(Model# F2I2VR-30)
Integrating a daylight camera with 30X optical zoom, an 2.8mm prim lens starlight HD camera, a13.5mm 640*480 uncooled thermal camera and 50mm 640*480 uncooled thermal camera , the Tri-mode Light-weight Gimbal System improves its correcting capability in target detection and recognition in complex environment by video fusion between thermal camera and the low-illumination HD camera. With tri-axis two-frame structure and electronic stabilization, the gimbal achieves high stabilization performance and 360° rolling that are suitable for wide range of applications including monitoring, surveillance, anti-terrorism, pipeline inspection etc. carried by fixed-wing, VTOL, single-rotor and multi-rotor UAVs and other systems.
- IRSEEN
- Shenyang, China
- 10 working days
- 100 sets per month (Looking for distributors)
- Information
- Video
- Download
Product highlights:
1. Integrated design: The universal joint adopts an integrated design, which can be quickly disassembled and easily installed. This ensures accessible operation and easy maintenance.
2.30x continuous optical zoom: A visible light camera equipped with a 30x optical zoom lens can achieve precise and clear imaging even at long distances. You can capture every detail with extraordinary clarity.
3. High precision laser ranging: The universal joint is equipped with a high-precision laser ranging system, which can provide unparalleled target positioning accuracy. You can believe that this universal joint can accurately identify and track targets in any environment.
4. Artificial Intelligence Human Vehicle Recognition: This universal joint includes advanced artificial intelligence human vehicle recognition functions, enhancing its specific application capabilities. Optimize your inspection operations and easily identify passenger cars.
5. 360 ° infinite cycle rotation: The universal joint adopts a three axis dual frame structure and electronic stability, allowing for 360 ° infinite cycle rotation. You can easily adjust the universal joint to fit any situation and capture seamless lenses from any angle.
6. Small and lightweight: This universal joint is small in size, lightweight, and easy to carry. It does not add unnecessary volume to drones, ensuring optimal performance and flight characteristics.
7. Low power consumption: The universal joint is designed with low power consumption to maximize the operating time of the drone. You can rely on this universal joint to maximize work efficiency and working hours.
Parameters
MODEL | F2I2VR-30 | |
System specification | System type | Gyro stability |
Weight | 1200g | |
Stable system | Platform type | Tri-axis |
Azimuth | 360°rotation | |
pitch | -100°～+100° | |
Roll | -45°~+45° | |
Maximum search angular velocity | ≥100°/s | |
Stability accuracy | 0.1mrad(1°/2HZ) | |
Angular position accuracy | ≤0.3° | |
Visible light camera 1 | Resolution and frame rate | 1920×1080 @60fps |
FOV | 63°×35°～2.3°×1.3° | |
Visible light camera 2 | Resolution and frame rate | 1920×1080 @60fps |
FOV | 2.8mm prime lens | |
Infrared camera | Resolution and frame rate | 640×480@60fps |
SMALL FOV | ||
BIG FOV | 31.7°×24°(13.5mm prime lens) | |
Ranging | Laser Ranging | Range≥3km; Accuracy±1m |
Tracking module | Frame rate | 60Hz |
Tracking speed | ±48 Pixel/frame | |
System external interface | Control | RS232、NET |
Video output | NET、SDI | |
Power supply | Power | 12～28V |
Power consumption | Av≤20W，Max≤30W | |
Environmental conditions | Operating temperature | -20℃～+50℃ |
Storage temperature | -40℃～+60℃ |
Dimensions
How it works:
The dual visible dual infrared five light Gimbal combines the functions of multiple cameras and advanced stabilization technology, providing excellent imaging and functionality. The integrated design allows for quick disassembly and easy installation, ensuring seamless operation. A 30x continuous optical zoom lens can achieve precise and detailed imaging even at long distances. In addition, high-precision laser ranging systems provide unparalleled target positioning accuracy, achieving precise tracking and recognition. The human vehicle recognition function has taken the universal joint as a whole to a new level. You can effortlessly identify cars and optimize operations. The 360 ° infinite rotation function ensures that you can capture the lens from any angle, with a compact design, light weight, and low power consumption.
Frequently asked questions:
Q: Is the universal joint compatible with different types of drones?
A: Yes, the dual visible dual infrared five beam gimbal is suitable for fixed wing, vertical takeoff and landing, single rotor, multi rotor unmanned aerial vehicles, and other systems. It provides flexibility and versatility for various aerial platforms.
Q: How to control the universal joint?
A: The universal joint can be controlled using a compatible flight controller or a separate dedicated universal joint controller. For detailed instructions on setting up and controlling programs, please refer to the user manual.
Q: Can the universal joint be remotely operated?
A: Yes, the universal joint can be remotely operated using a compatible control system. This allows seamless control and operation within a safe distance.
NETD is the noise equivalent temperature difference of the infrared camera, which is one of the main indicators of infrared detectors. NETD is an objective evaluation index for the sensitivity of a thermal imaging system and can be used to predict the detection distance of a small temperature difference point target. The NETD value of the ZXIR infrared camera is less than 50mk. The smaller the NET...more
