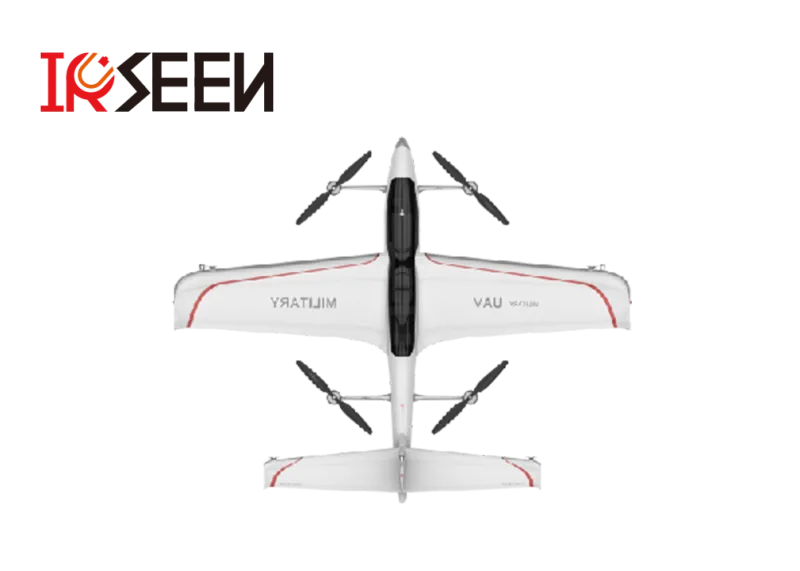

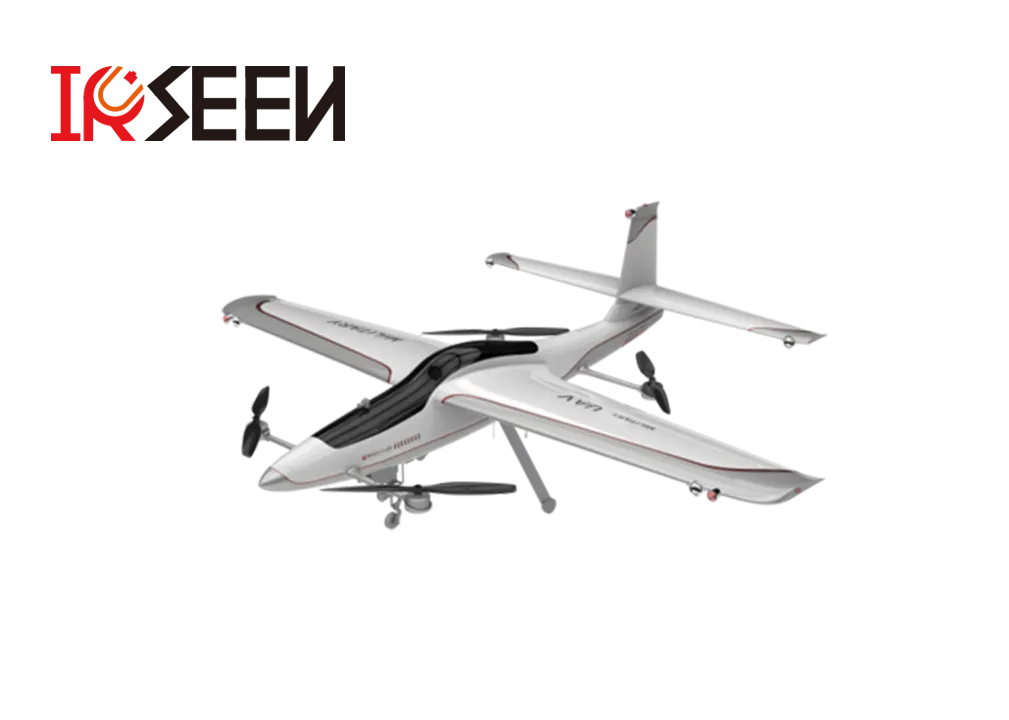

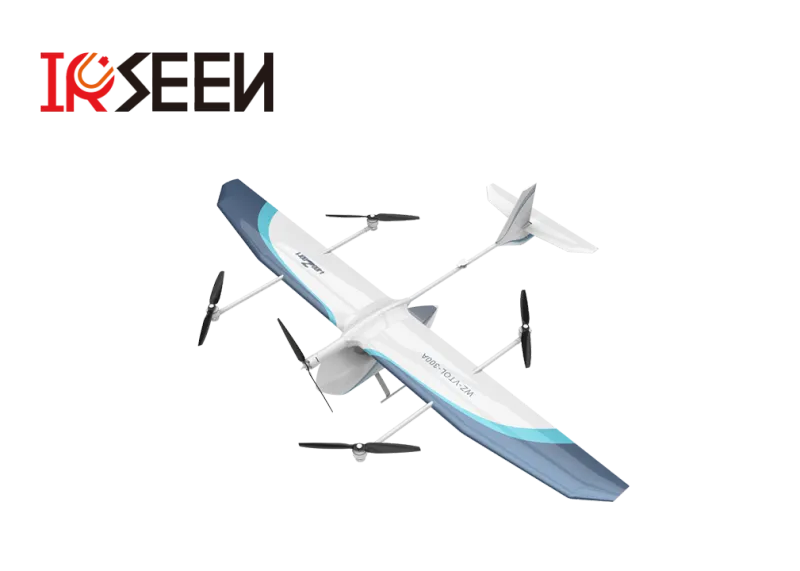

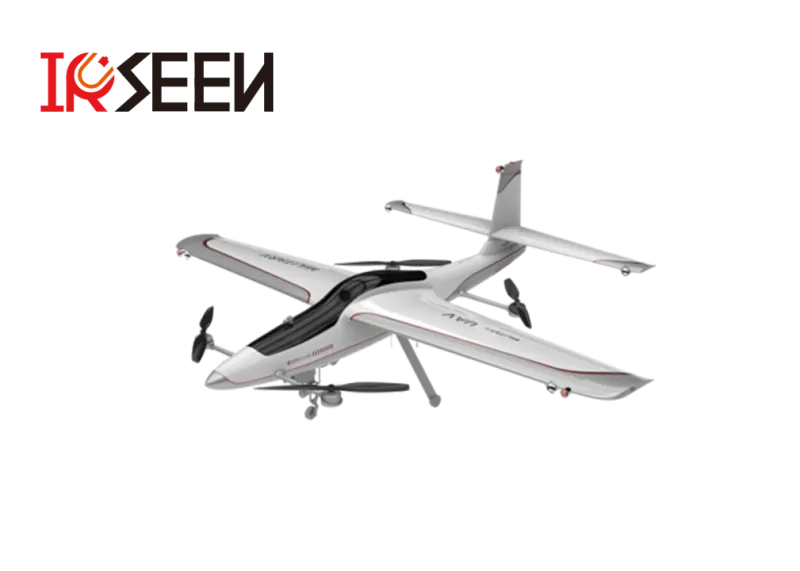

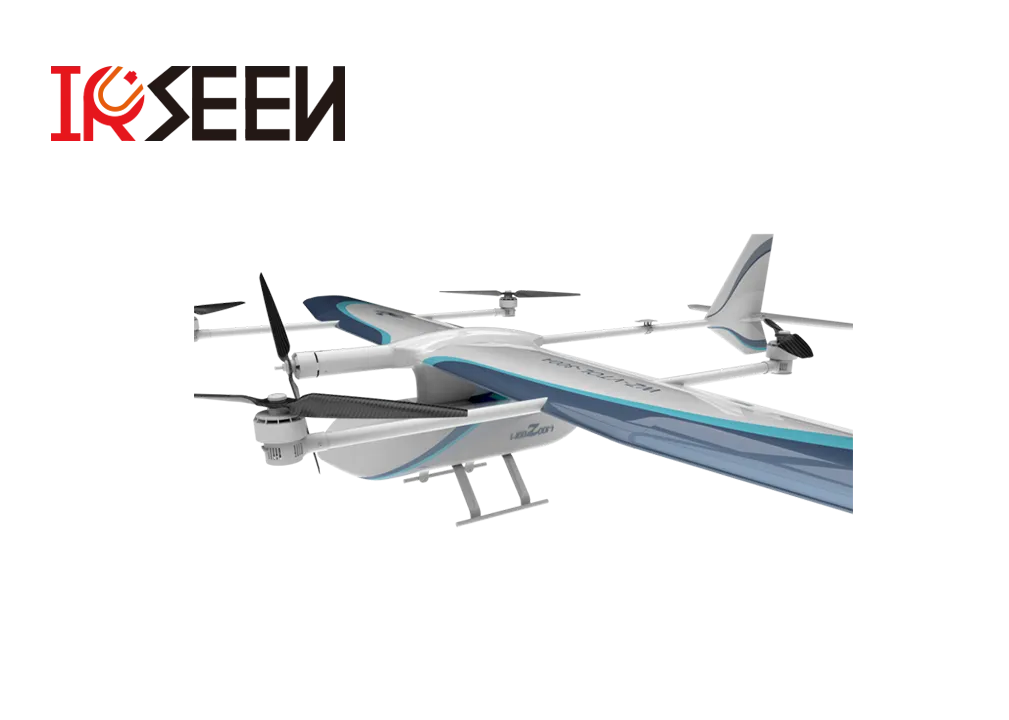

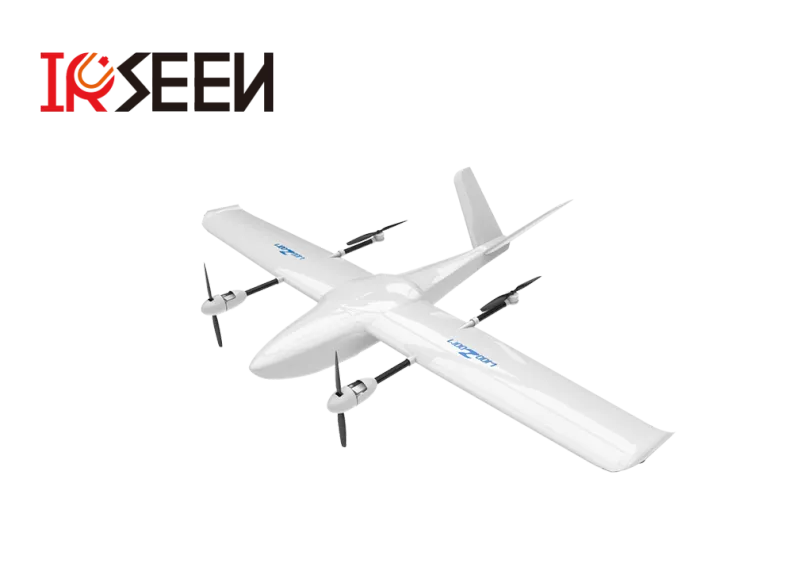

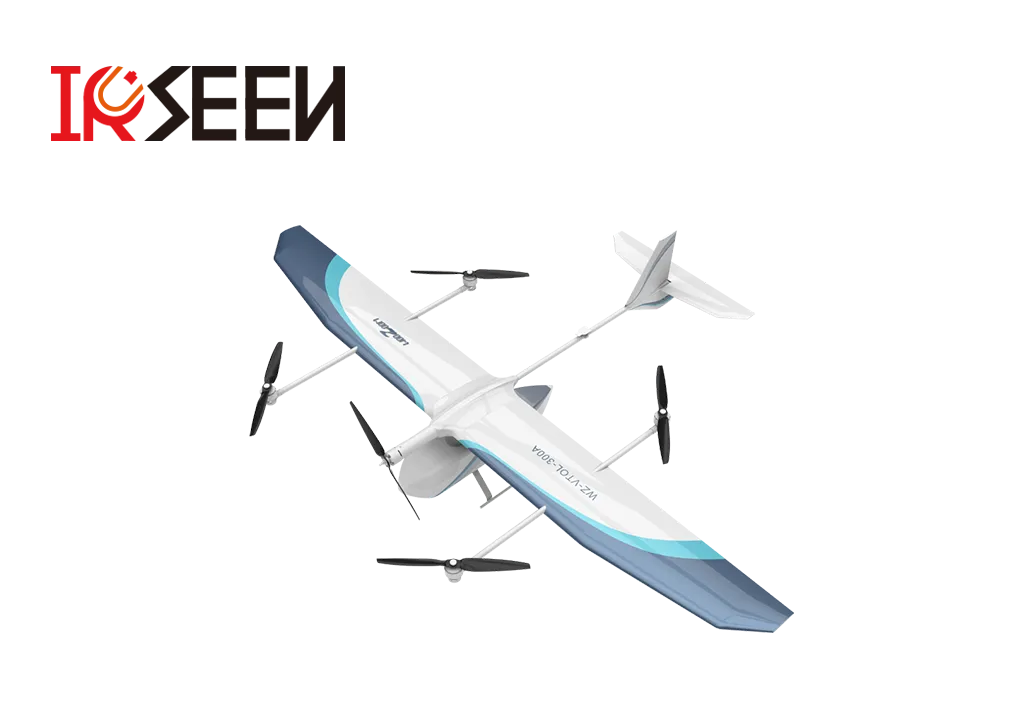

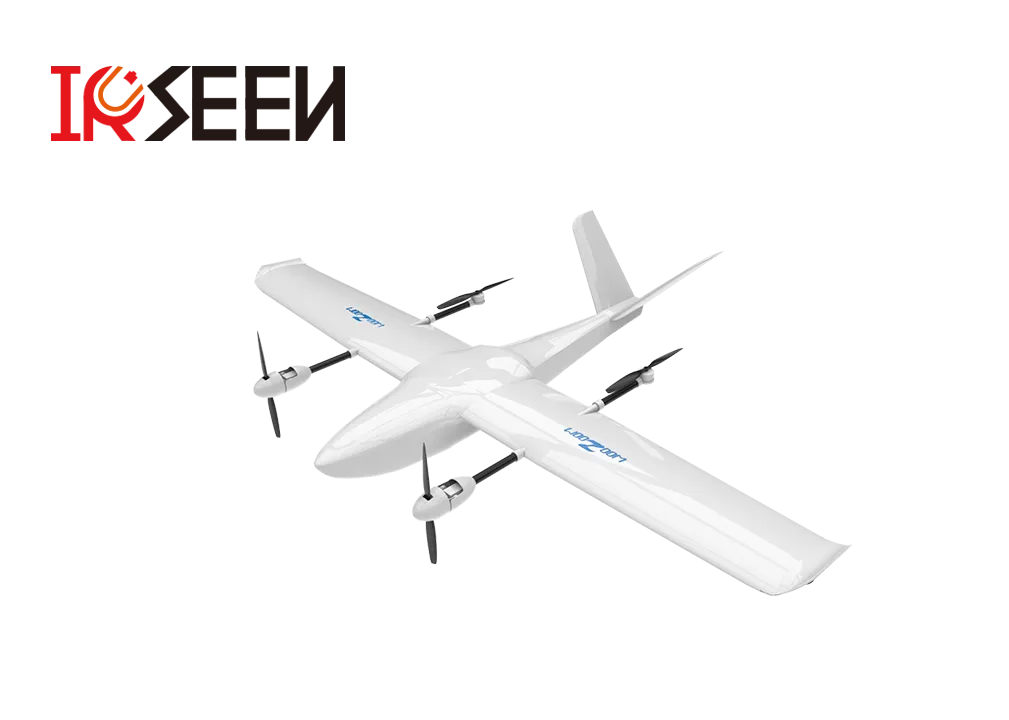

Vertical takeoff and landing fixed wing
Introduction
Vtol fixed wing unmanned flight due to its special platform. Combining the advantages of fixed wing UAV and multi-rotor UAV, it not only has the characteristics of flight duration, fast speed and long range of fixed wing UAV, but also has the vertical takeoff and landing function of multi-rotor UAV.
Features
Max size 3.1×2×0.7(m)
Mission load 1~2kg
Working radius ≥30km
Cruising speed 70-80km/h
Flight control reliability
Parameters
Overall dimension | 3.1 x 2 x 0.7(m) (Wingspan x length x height) |
Maximum take-off weight | 16kg |
Mission load | 1-2.5 kg |
Endurance time | Acuity 1.5 hr |
Working radius | Acuity 30 km |
Maximum wind resistance | Wind force 6 |
Cruising speed | 70-80km/h |
+ maximum flying speed | 120km/h |
Flight controller reliability | P 300 HRS |
Operating temperature | -10℃ to 40℃ |
NETD is the noise equivalent temperature difference of the infrared camera, which is one of the main indicators of infrared detectors. NETD is an objective evaluation index for the sensitivity of a thermal imaging system and can be used to predict the detection distance of a small temperature difference point target. The NETD value of the ZXIR infrared camera is less than 50mk. The smaller the NET...more
