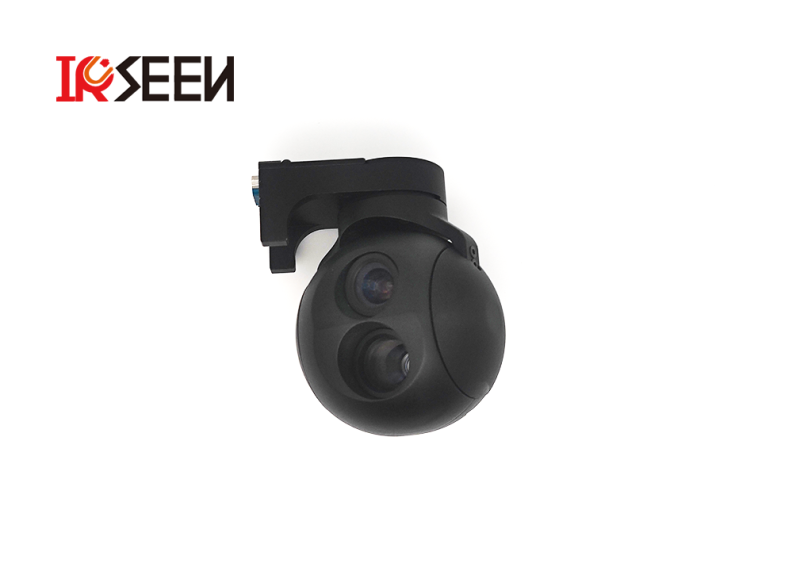

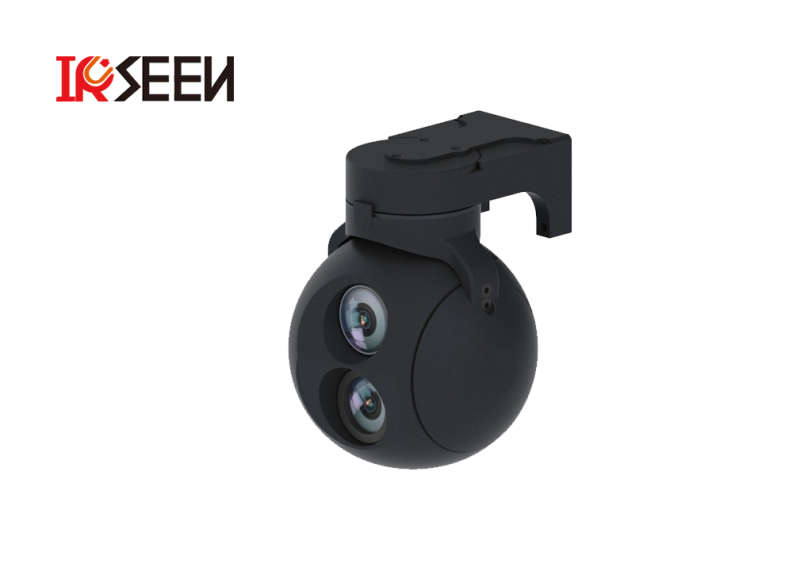

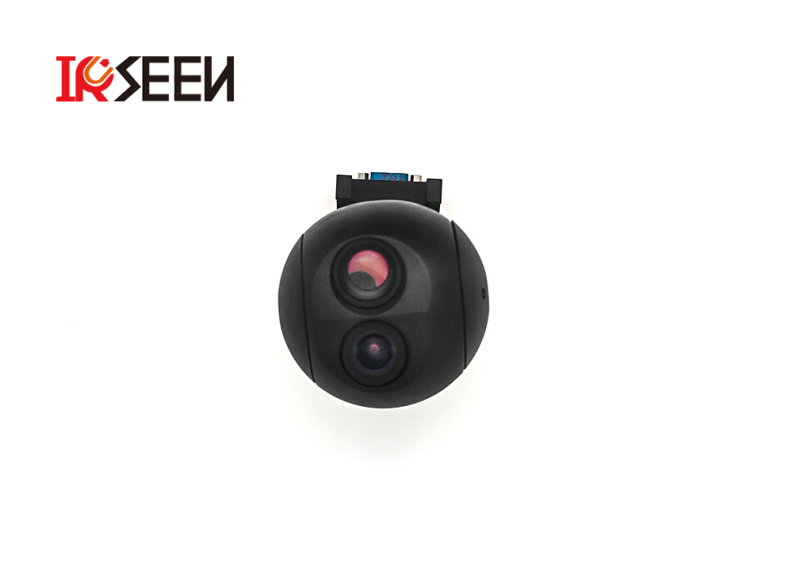

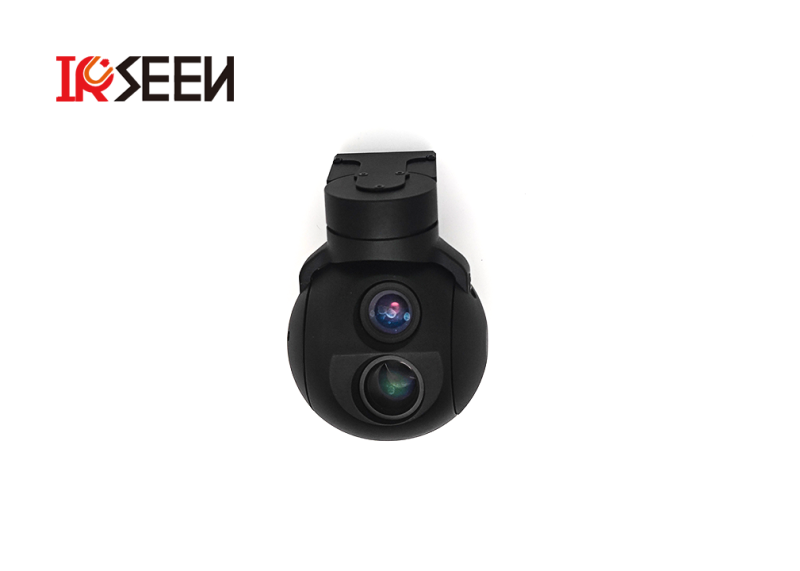

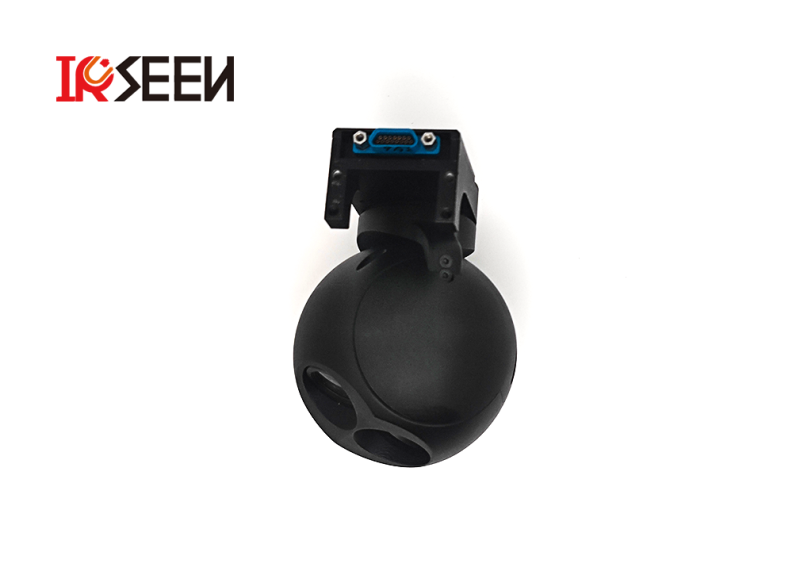

Equipment Double visible miniature gimbal
(Model# SI2)
The dual visible micro universal joint of this device is an advanced drone universal joint designed specifically for professionals in the field of drones and aviation imaging. With its cutting-edge features and compact design, this universal joint provides unparalleled performance and versatility.Thermal Imaging Tracking System searches and tracks movements around the clock, regardless of climatic circumstances, and outputs controlling commands to flight control system of the UAV.
- IR SEEN
- China
- 20 working days
- 300
- Information
- Video
- Download
Product highlights:
1. Lens aspect: The universal joint is equipped with a 7.2mm main lens EO (electro optic) and a 25mm main lens EO, providing high-resolution imaging capability and capturing complex details from different distances.
2. Tracking function: The universal joint is equipped with the most advanced tracking module, which can accurately track objects in real-time. This feature allows you to easily track moving objects, thereby improving the effectiveness of tracking.
3.12-28V power input: This universal joint has a wide voltage input range of 12-28V, providing flexibility and compatibility with various power sources. This ensures uninterrupted and reliable power supply, even under harsh operating conditions.
4. Ethernet video output: The universal joint is equipped with Ethernet video output, which can seamlessly and high-quality transmit videos to your device. This feature enables real-time detection and remote viewing, ensuring that you do not miss important details when using it.
5. Small size and low power consumption: weighing less than 240 grams, this universal joint is very compact and lightweight. Its small size, low power consumption, and convenient installation.
Specification:
Weight: less than 240g
Working voltage: 12-28V
Lens type: 7.2mm main lens EO+25mm main lens EO
Video output: Ethernet
Image stabilization: equipped with servo image stabilization function
Tracking function: built-in tracking function for precise tracking of objects
EMC design specifications: All electronic devices are securely packaged in an integrated metal casing, in accordance with EMC (electromagnetic compatibility) design specifications, which can enhance performance and durability.
Parameters
MODEL | SI2-01 | SI2-02 | SI2-03 | |
System specification | System type | Gyro stability | ||
Weight | 240g | 290g | ||
Stable system | Platform type | Two axle | Tri axis | |
Azimuth | -110°～+110° | N×360° | ||
pitch | -100°～+40° | |||
Maximum search angular velocity | ≥100°/s | |||
Stability accuracy | 0.1mrad(1°/2HZ) | |||
Angular position accuracy | ≤0.3° | |||
Visible light camera 1 | Resolution and frame rate | 1920×1080 @60fps | ||
BIG FOV | 38.3°×22.1°(8mm) | |||
Visible light camera 2 | Resolution and frame rate | 1920×1080 @60fps | ||
SMALL FOV | 12.7°×7.1° (25mm) | |||
Tracking module | Frame rate | 60Hz | ||
Tracking speed | ±48 Pixel/frame | |||
System external interface | Control | RS232 | ||
Video output | NET | |||
Power supply | Power | 12～28V | ||
Power consumption | Av≤10W，Max≤20W | |||
Environmental conditions | Operating temperature | -40℃～+60℃ | ||
Storage temperature | -50℃～+70℃ | |||
shock resistance | ≥400g | |||
Dimensions
SI2-01
SI2-02
SI2-03
How it works:
The design of the device's dual visible micro universal joint can be easily integrated into drones. Simply connect the universal joint to the drone's flight control system and power it with a 12-28V power supply. The universal joint utilizes its main lens EO and tracking function to capture high-resolution images and accurately track target objects, providing you with valuable data and insights.
Frequently asked questions:
Q: Can this universal joint be used with any type of drone?
A: Yes, the device's dual visible micro universal joint is compatible with various drones. The size and low power consumption make it suitable for integration with various drone models.
Q: How does the tracking function work?
A: The tracking function of this universal joint uses advanced algorithms and sensors to identify and track moving objects. It ensures that the camera is always focused on the subject being photographed, enabling accurate detection and data collection.
Q: What are the advantages of the servo image stabilization function?
A: The servo image stabilization function helps to maintain stable and clear images even under turbulent flight conditions. This function ensures that the captured lens remains stable, thereby improving the overall quality of aerial imaging.
