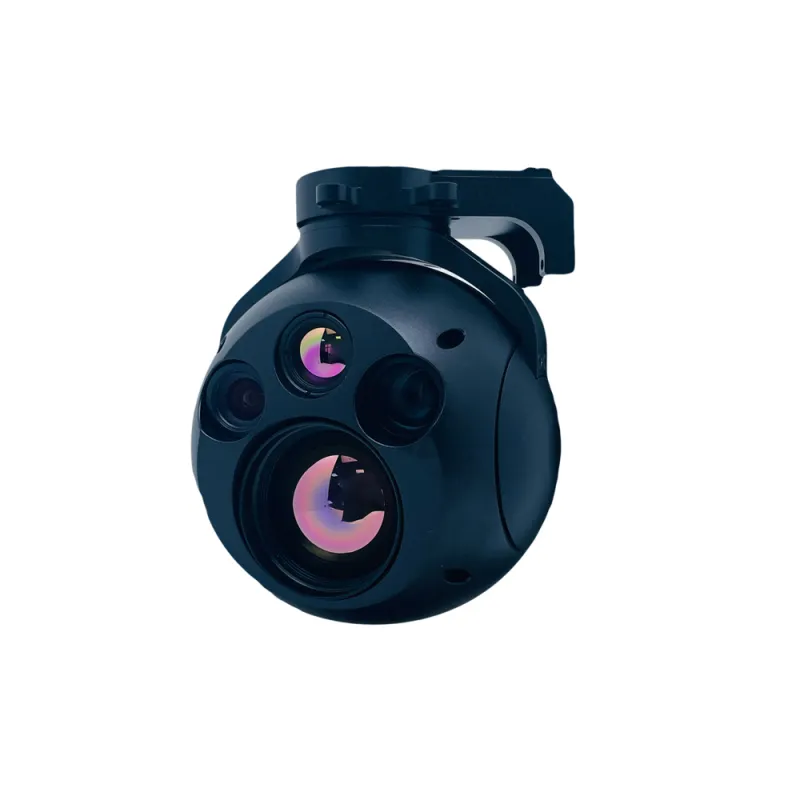

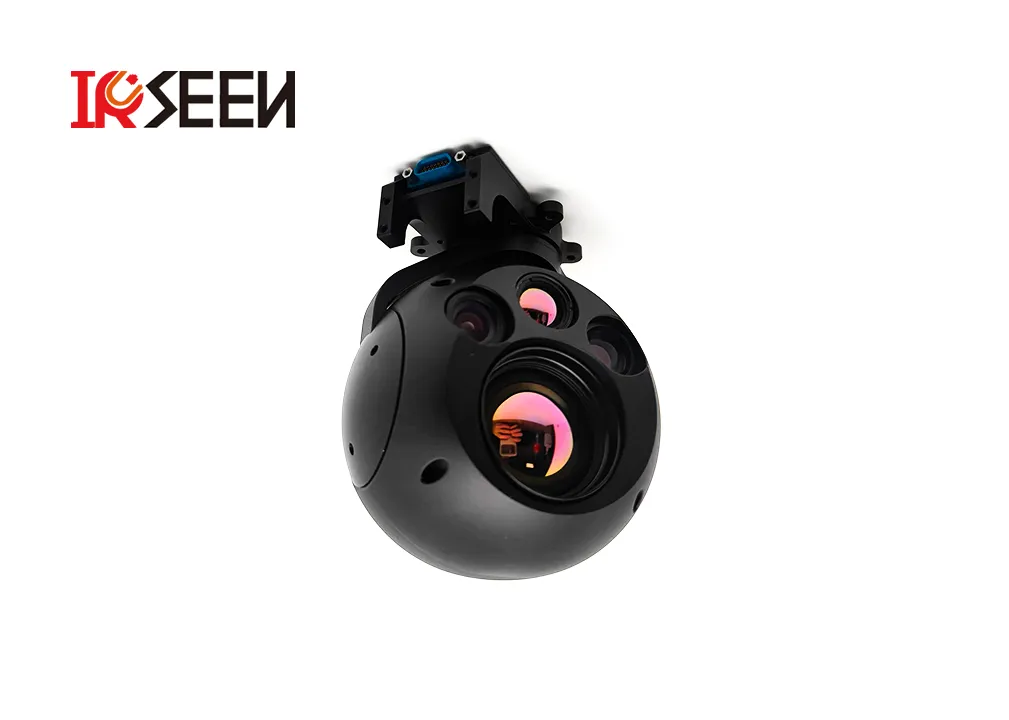

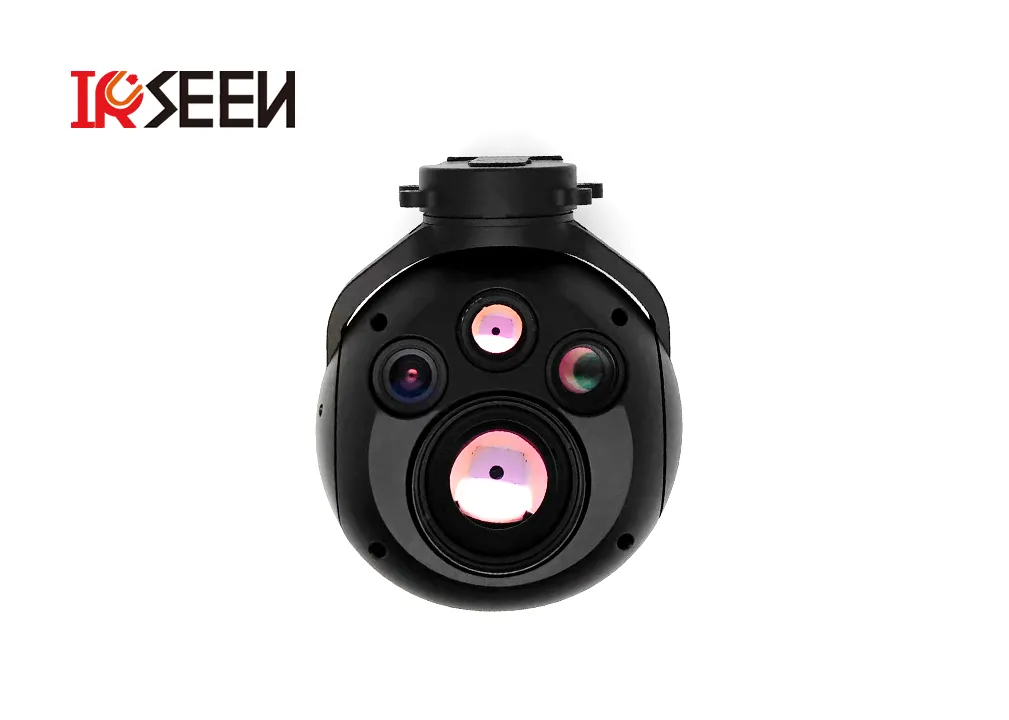

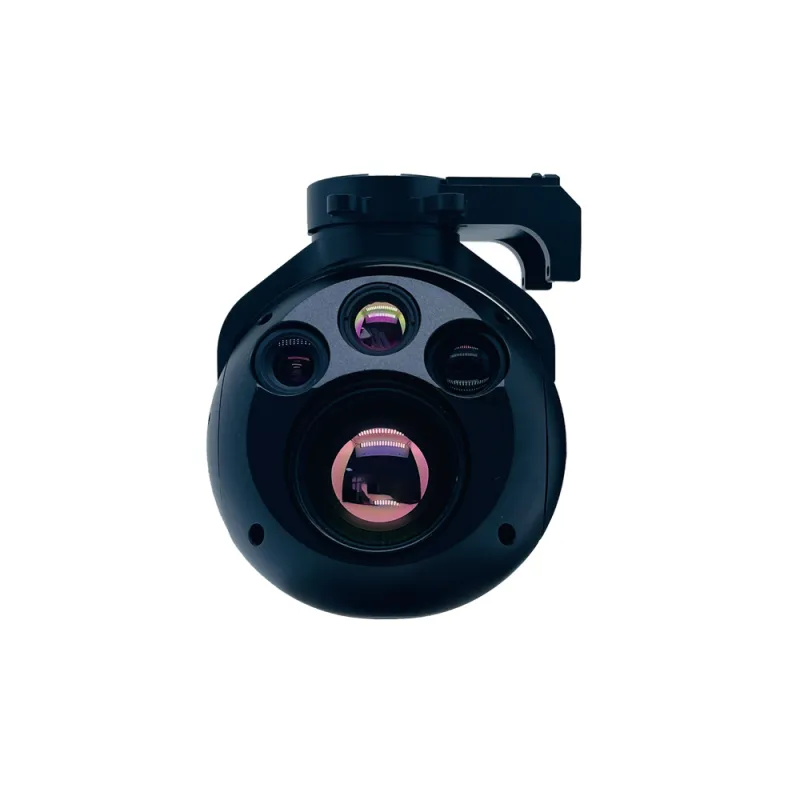

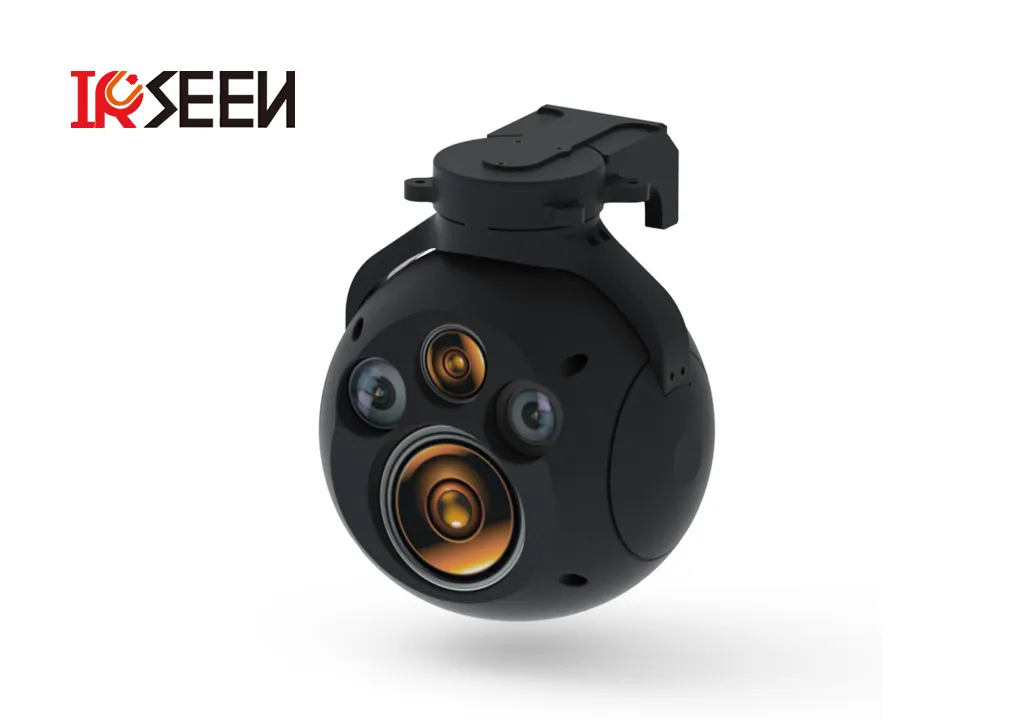

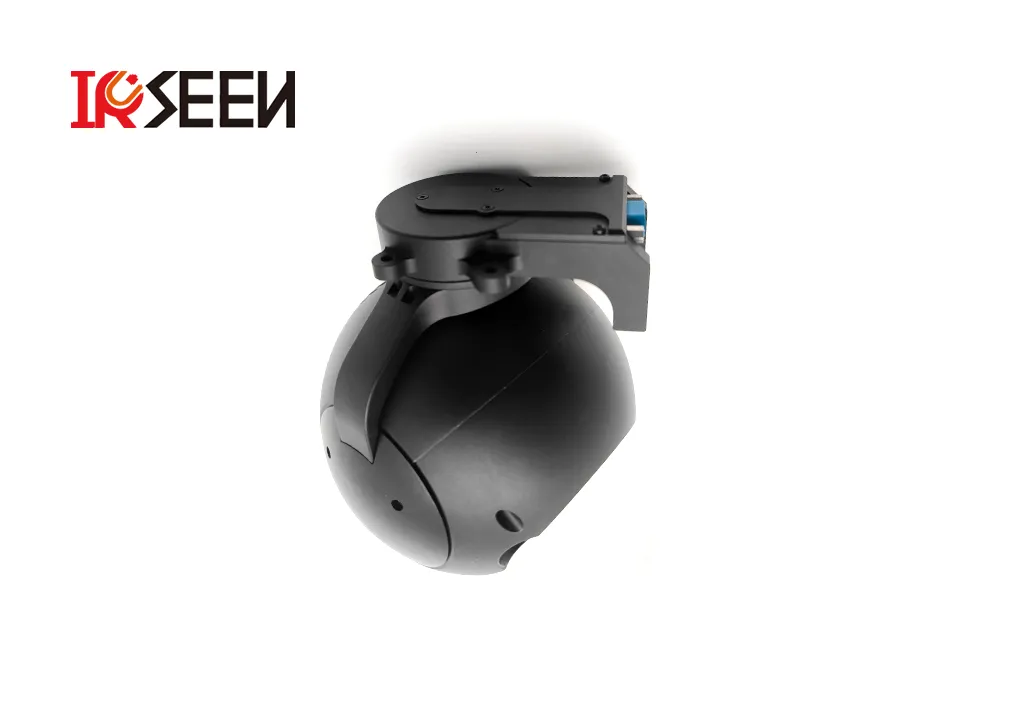

Equipment Double infrared micro gimbal

(Model# S2I2V)
The dual infrared micro universal joint is a highly advanced system designed to track targets at any time under various weather conditions. This professional grade universal joint is composed of a front view infrared camera, a visible light camera, a side view camera, and a tracking module.

  • IR SEEN
  • China
  • 20 working days
  • 300
  • Information
  • Video
  • Download

Product highlights:



1.Dual infrared camera: The system is equipped with a forward looking infrared camera and a visible light camera to enhance visibility and accurately track targets.

2.Side view camera: The dual infrared micro universal joint also includes a side view camera to ensure full coverage of the surrounding environment when hovering around the target.

3.All weather tracking: This universal joint is designed to perform perfectly under any weather conditions, allowing for continuous operation even in challenging environments.

4.Powerful tracking module: The included tracking module ensures accurate tracking of targets.

5.Drone payload: This universal joint is designed specifically for drones, with light weight and compact structure, making it an ideal payload for executing aerial missions.




Parameters


MODEL


S2I2V-01

S2I2V-02

S2I2V-03

System specification

System type

Gyro stability

Weight

550g

650g

Stable system

Platform type

Two axle

Tri axis

Azimuth

-110°~+110°

N×360°

pitch

-100°~+30°

Maximum search angular velocity

100°/s

Stability accuracy

0.1mrad(1°/2HZ)

Angular position accuracy

0.3°

Visible light camera

Resolution and frame rate

1920×1080 @60fps

BIG FOV

42°×24.5°(7.2mm)

SMALL FOV

12.7°×7.1°(25mm)

Infrared camera

Resolution and frame rate

640×512@60fps

BIG FOV

31.7°×25.6°(13.5mm prime lens)

SMALL FOV

12.5°×10°(35mm prime lens

Ranging

Laser Ranging

Range3km;

Accuracy±1m

Tracking module

Frame rate

60Hz

Tracking speed

±48 Pixel/frame

System external interface

Control

RS232

Video output

NET

Power supply

Power

1228V

Power consumption

Av15WMax30W

Environmental conditions

Operating temperature

-40℃~+60

-20℃~+60

Storage temperature

-50℃~+70

shock resistance

400g




Dimensions

UAV GIMBAL



 Pseudo color mode



eo ir camera


 PIP Mode



gimbal camera


How it Works



The working principle utilizes the latest infrared and visible light camera technology, and the infrared and visible light cameras work together to capture high-quality images and accurately track targets. The side view camera provides a wider coverage range, allowing the system to accurately track around the target. The tracking module ensures the accuracy of tracking and achieves efficient work efficiency.


Frequently asked questions:


Q: Does this universal energy-saving system withstand harsh weather conditions?

A: Yes, designed for perfect operation under all weather conditions.

Q: How light is a universal joint?

A: The universal joint design is lightweight, ensuring the optimal performance of the drone.

Q: Does the system provide real-time target tracking?

A: Yes, the universal joint includes a powerful tracking module that allows for precise real-time target tracking.

Using professional level equipment with dual infrared micro universal joints, take your monitoring capabilities to a new level. Its advanced features, all-weather performance, and precise tracking make it an indispensable tool for any surveillance operation.
