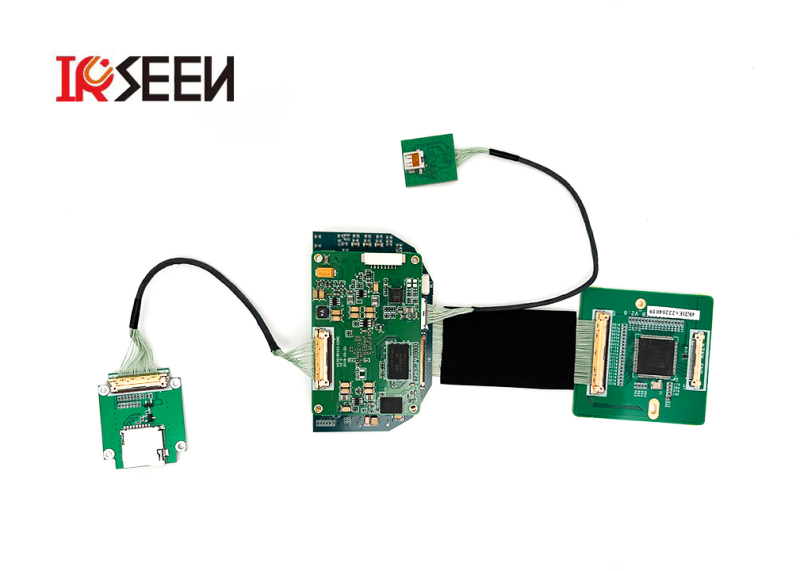

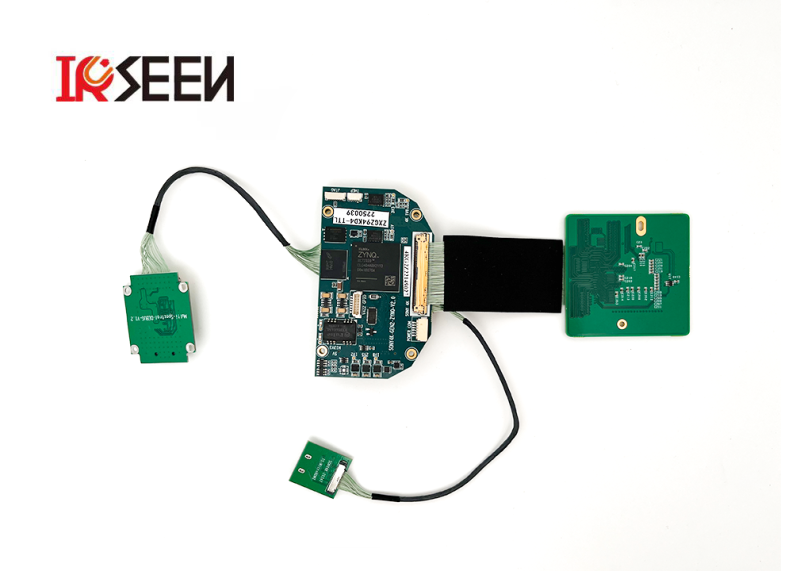

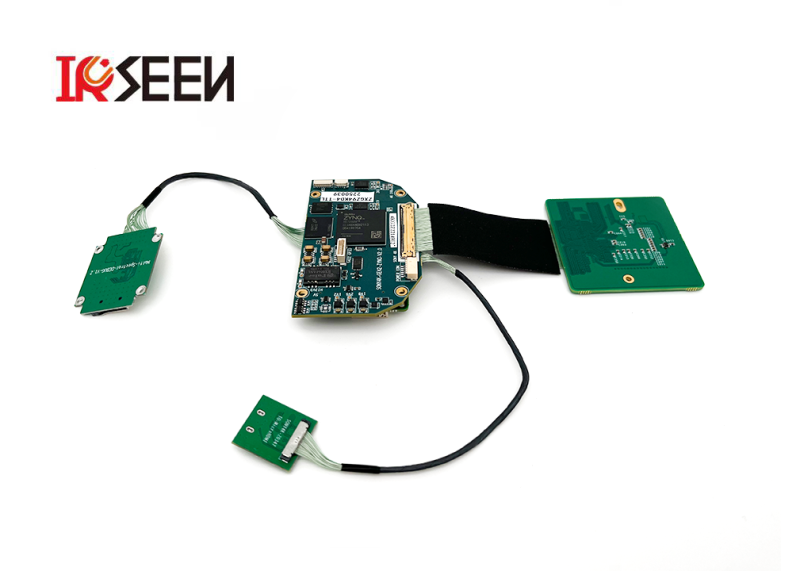

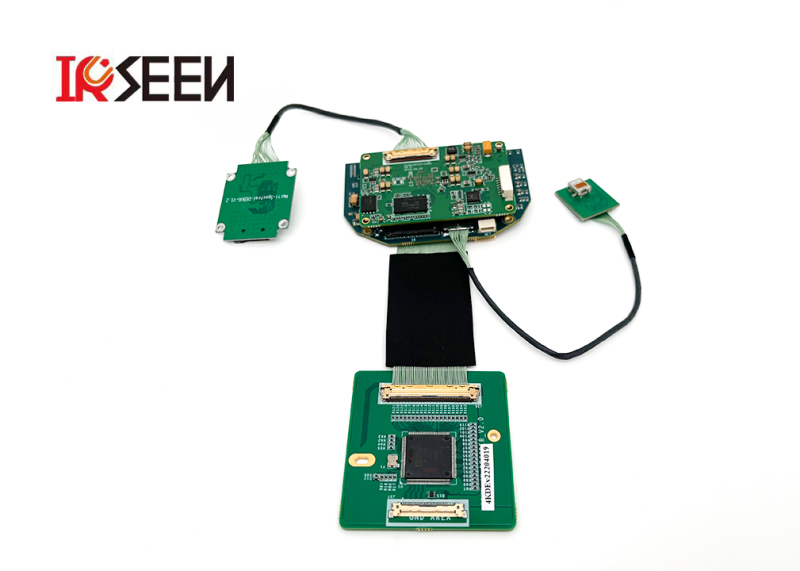

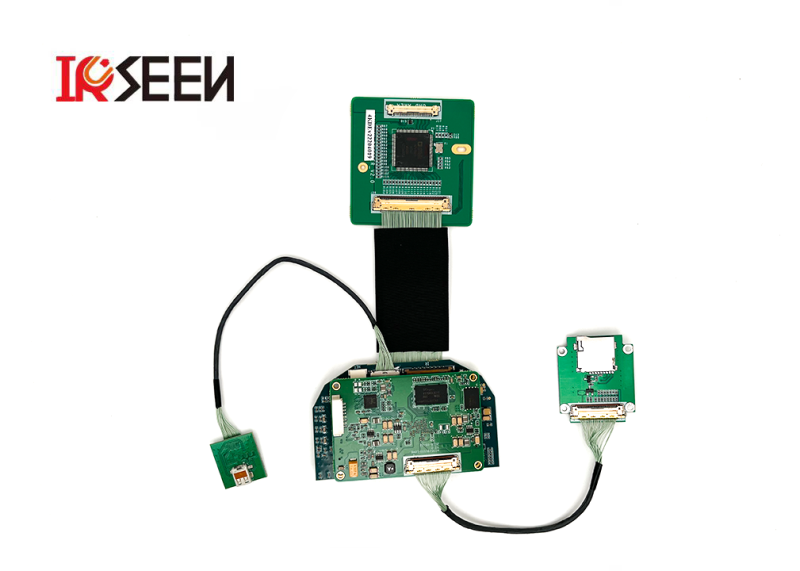

4K Video Tracker
(Model# H4K)
4K Video Tracker is a device that tracks the static/moving target in the complex background of UAV and other high-speed moving platforms on a real-time basis.
Supporting sony 8530 video input as well as HDMI & Ethernet video output, this video tracker could be used with video stream sent out of EO camera in (UAV) monitoring, surveillance industries.
- IRSEEN
- Shenyang, China
- 3 working days
- 500 sets per month (Looking for distributors)
- Information
- Download
Product highlights:
1. Integrated Video Tracking
2. High image quality and scene adaptability
3. Support for external input video (picture-in-picture)
4. OSD interface display
5. Custom character overlays
6. Rich communication interfaces
7. Small size, low power consumption
Parameters
MODEL | H4K | |
video format | Video input | 3840×2160 |
Video output | HD 1080p | |
Video storage | SD card for JPEG/H.264 (default 32G, support up to 128G) | |
Tracking index | Frequency | 25Hz-60Hz |
Minimum target contrast | 5% | |
Tracking speed | ±32 pixels/frame | |
Target effective memory | 100 frames | |
Target size | 16×16～128×128pixels | |
Electrical interface | Video input | LVDS-sony8530 |
Video output | ||
Communication interface | TTL | |
Power input | DC 12V | |
Environment suitability | Working temperature | -40℃～60℃ |
Storage temperature | -45℃～65℃ | |
Others | Size | Φ75mm*45mm |
Weight | <52g | |
Power | Average ≤12W，Maximum ≤20W |
Dimensions
NETD is the noise equivalent temperature difference of the infrared camera, which is one of the main indicators of infrared detectors. NETD is an objective evaluation index for the sensitivity of a thermal imaging system and can be used to predict the detection distance of a small temperature difference point target. The NETD value of the ZXIR infrared camera is less than 50mk. The smaller the NET...more
