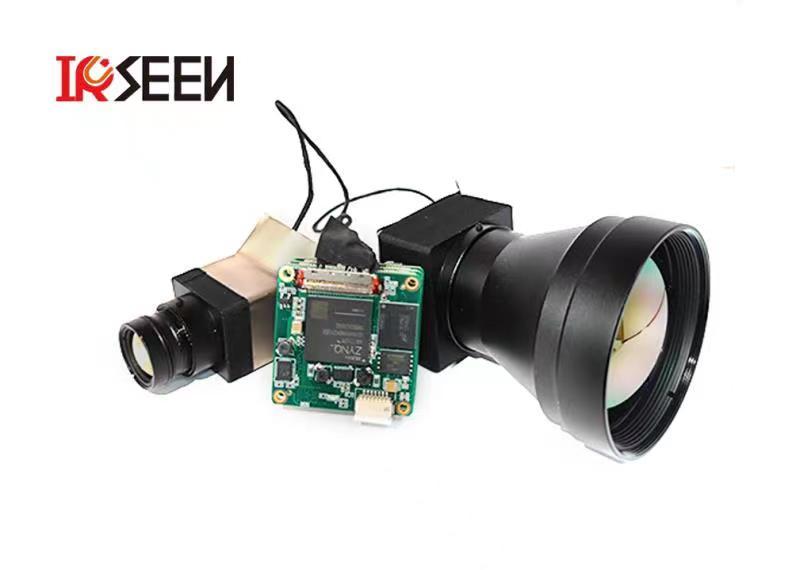

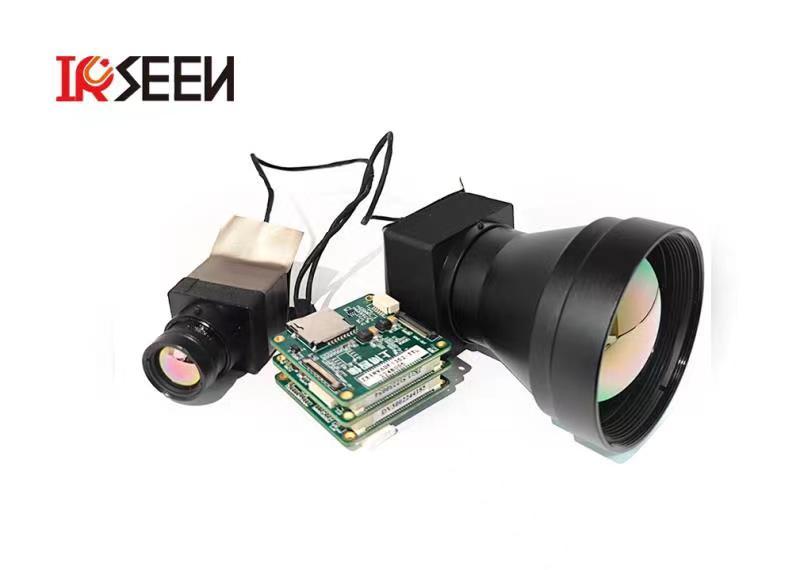

VoX SD Thermal Camera
(Model# SV2K-DE)
With 640*512 VoX detector inside, the VoX SD Thermal Camera displays images in a more moderate way that's very suitable for applications such as long distance monitoring and surveillance with 13mm&52mm and above lens.
VoX SD Thermal Camera supports PAL and camera link for video output while having target tracking function as a standard configuration.
- IRSEEN
- Shenyang, China
- 7 working days
- 500 sets per month (Looking for distributors)
- Information
- Video
- Download
Product highlights:
1. Integrated Video Tracking
2. High image quality and scene adaptability
3. No shutter (NUC) technology
4. On-line temperature measurement, false color display
5. Support for external input video (picture-in-picture)
6. OSD interface display
7. Custom character overlays
8. Rich communication interfaces
9. Small size, low power consumption
10.The two fields of view switch quickly
Parameters
MODEL | SV2K-DE | |
Imaging index | Working format | Un-cooled 8μm~14μm |
Resolution | 640×512 | |
Size of pixel | 12μm | |
Emissivity correction | Emissivity0.01~1 adjustable | |
NETD | ≤50mK（@25℃） | |
MRTD | ≤550mK（under characteristic frequency） | |
Color palette | Black hot/white hot/pseudo color | |
Digital zoom | 2X、3X、4X | |
Temperature measurement | Temperature bar with highest/lowest/center temperature spot | |
Measurement range | 0℃~120℃ | |
Tracking index | Data refresh rate | 25Hz（IR）/ as Sony core（visible light） |
Tracking velocity | ± 32 pixels / frame | |
Target size | 16x16～128x128 pixels | |
Environmental adaptation | Working temperature | -40℃～60℃ |
Storage temperature | -40℃～65℃ | |
Electrical interface | Communication interface | TTL |
Video Input | ||
Video Output | LVDS+Net | |
Video storage | The SD card stores JPEG images/h. 264, H265, and MP4 Video (32 gigabytes from the factory, up to 128 gigabytes) | |
Power input | DC 12V | |
Others | Weight | ＜155g |
Lens | 13mm&52mm | |
Power consumption | ≤4.6W (@25℃) |
Dimensions
NETD is the noise equivalent temperature difference of the infrared camera, which is one of the main indicators of infrared detectors. NETD is an objective evaluation index for the sensitivity of a thermal imaging system and can be used to predict the detection distance of a small temperature difference point target. The NETD value of the ZXIR infrared camera is less than 50mk. The smaller the NET...more
