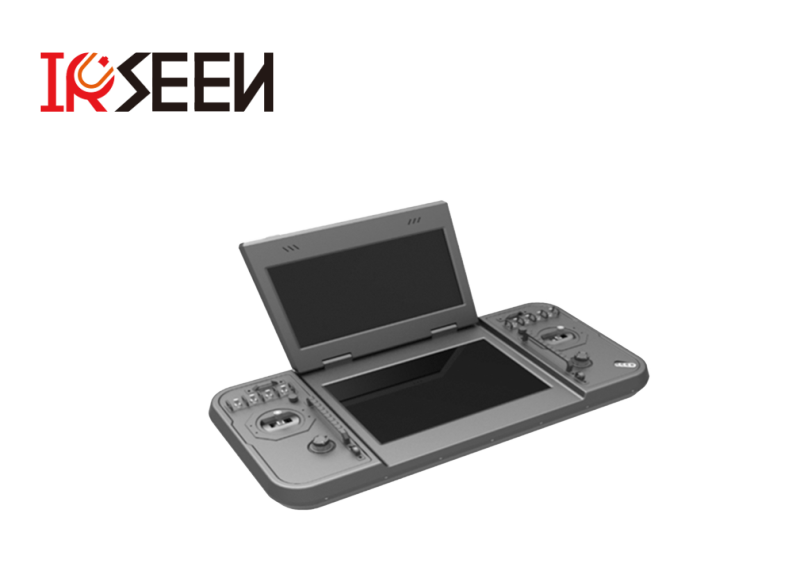

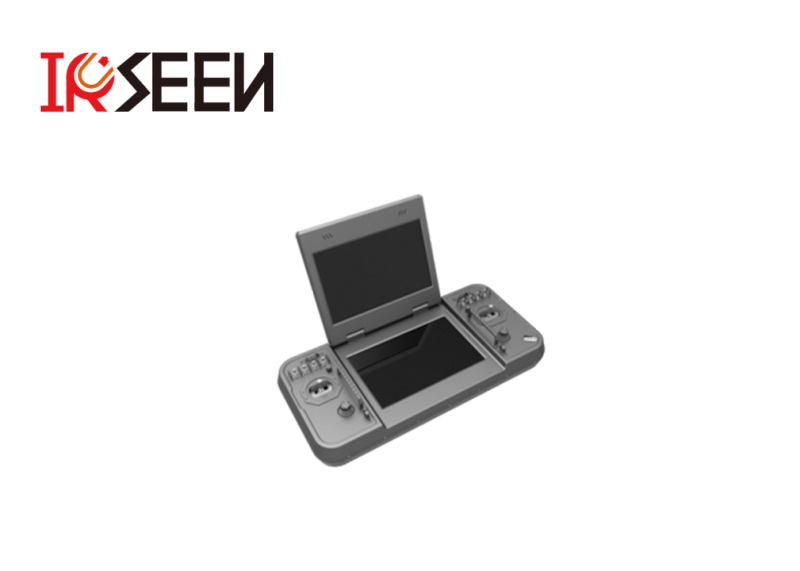

Industrial grade three defense ground station
It adopts industrial-grade three-defense integrated ground station, which integrates remote control, digital transmission and picture transmission links, and can simultaneously control various mission loads such as aircraft and pods. It is durable and easy to operate.
- Information
Industrial grade three defense ground station
Introduction
It adopts industrial-grade three-defense integrated ground station, which integrates remote control, digital transmission and picture transmission links, and can simultaneously control various mission loads such as aircraft and pods. It is durable and easy to operate.
Features
l built-in industrial-grade computer mainframe, with strong Intel processors, high-speed solid-state drives, integrated industrial remote digital, Gao Qingtu preach, remote control link, and ensure effective control over 30 km distance can run stably for a long time.
l with the intelligent voice prompt, convenient manipulation. Up to 16 channels of integrated remote control truly realizes one-button takeoff and landing, one-button homing, mission planning and load control easy operation.
l double screen, the user can view the tasks at the same time programming interface of image information and real-time feed-back. Adopt 1280*800 high resolution IPS industrial display, brightness up to 1000 cd/㎡, covered with anti-reflection coating, can be used normally under the sun.
l overall to aluminum alloy strengthening, vibration, drop, dust and water splashed with strong protection.
l design accord with human body engineering, facilitate single carry and operation. Abundant expansion ports (such as USB, network port, VGA, HDMI, and USART) facilitate later upgrade and maintenance.
Parameters
Host type | Industrial motherboard |
CPU | Intel® Core™ i5-5200U 1.8GHz Dual Core |
memory | DDR3 4 GB |
Hard disk | 64 GB PCIE SSD |
other | Wi-Fi module with PCIE interface, intelligent battery management module |
Protection class | IP54 |
Seismic grade | Comply with GJB150.16A-2009 standard |
Remote control distance | More than 30 km |
Other links | Integrated 915M, 4G data transmission, and 30 km wireless HD image transmission |
Working time | 6 h |
Display screen | High resolution 1280*800 IPS industrial display, visible under bright light |
dimension | 480*230*80 (mm) |
weight | 5.2kg |
Operating voltage Control mode | Ac adapter (30 W, 100-240 VAC, 50/60 Hz, DC 19.6 V/3 A) |
Lithium-ion Smart Battery (14.8V, 10000 mAh) | |
Operating temperature | Supports mouse, keyboard, and touchpad |
Host type | -10℃ ~ 60℃, low temperature performance does not weaken |
