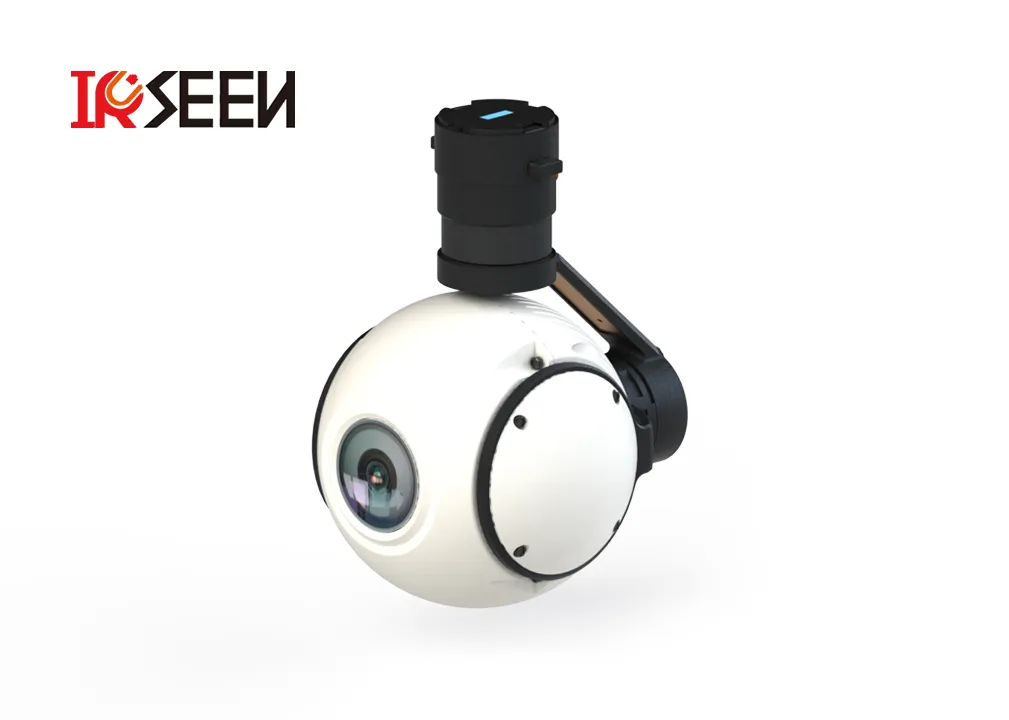

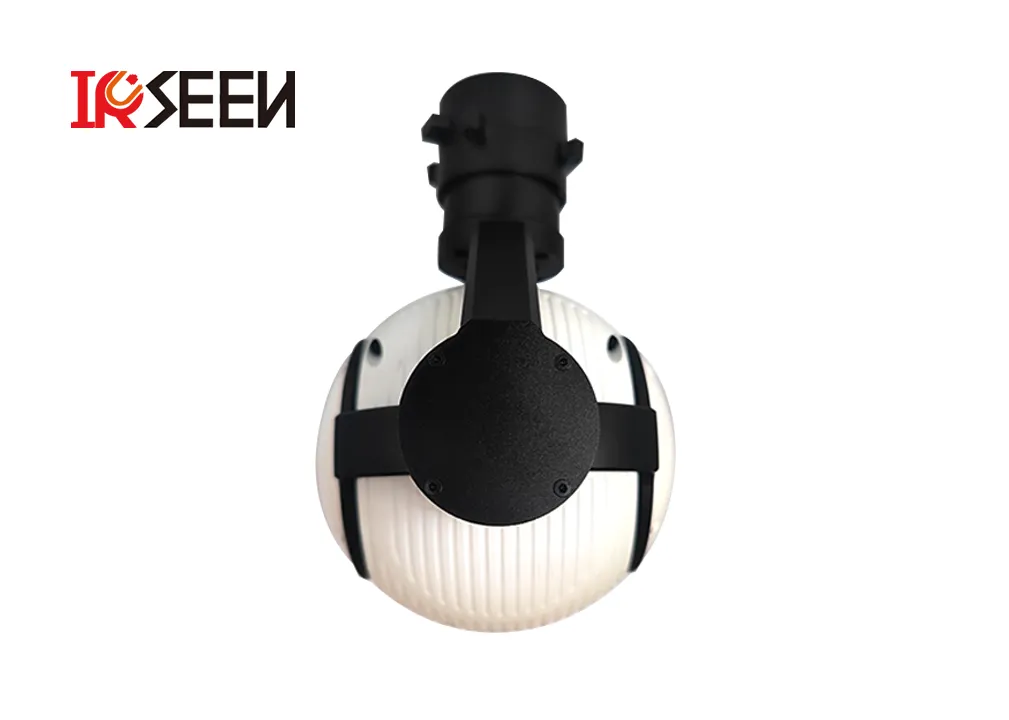

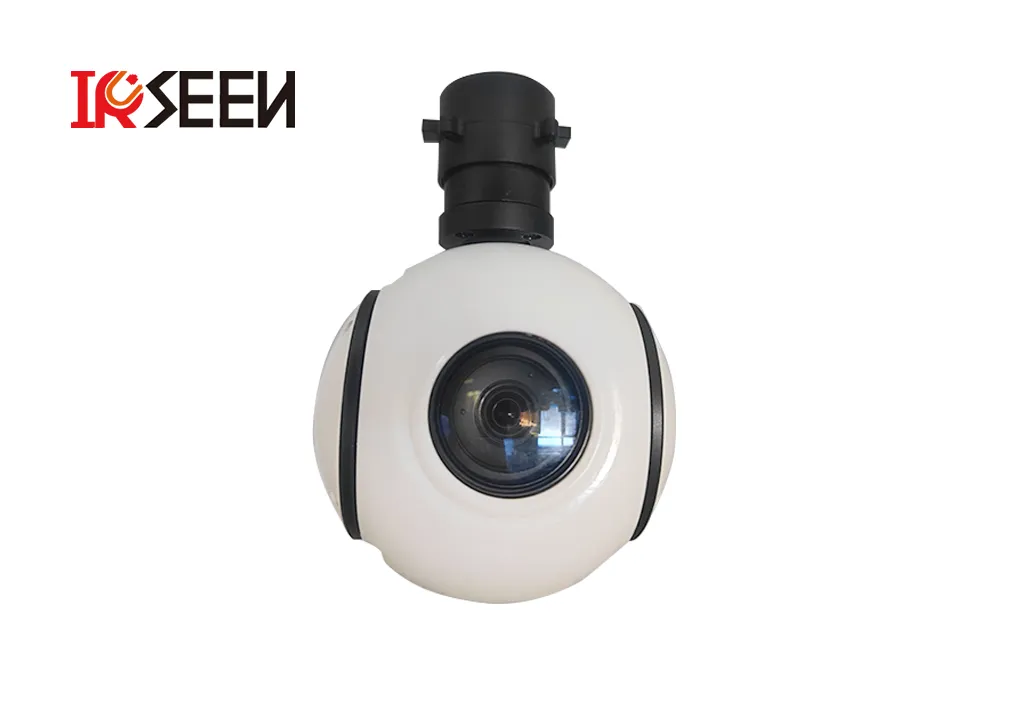

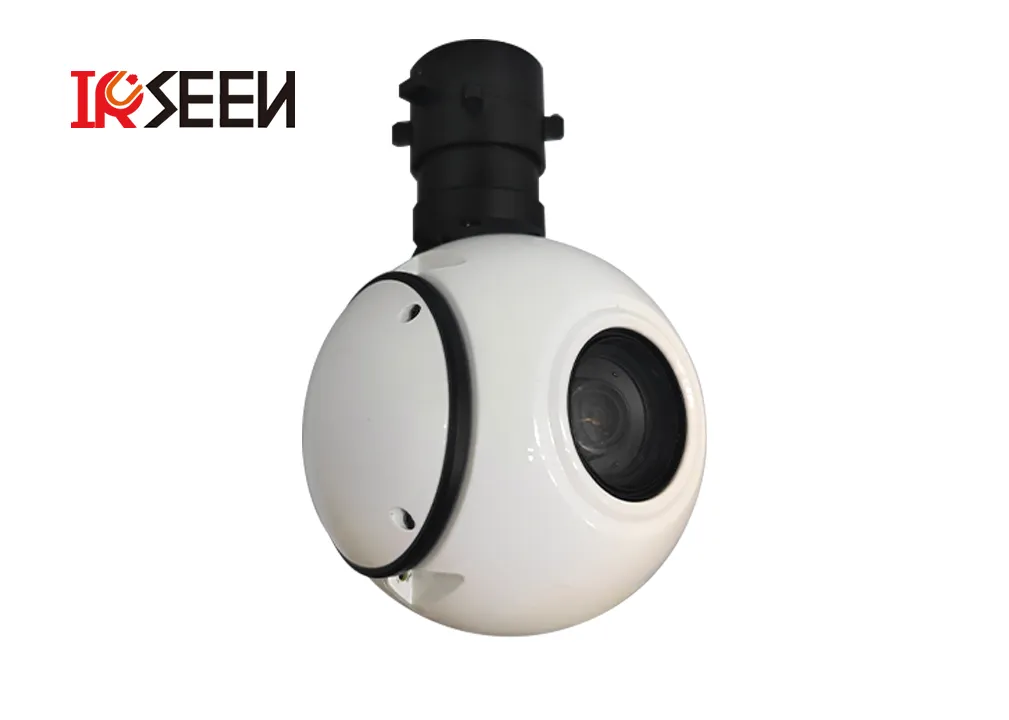

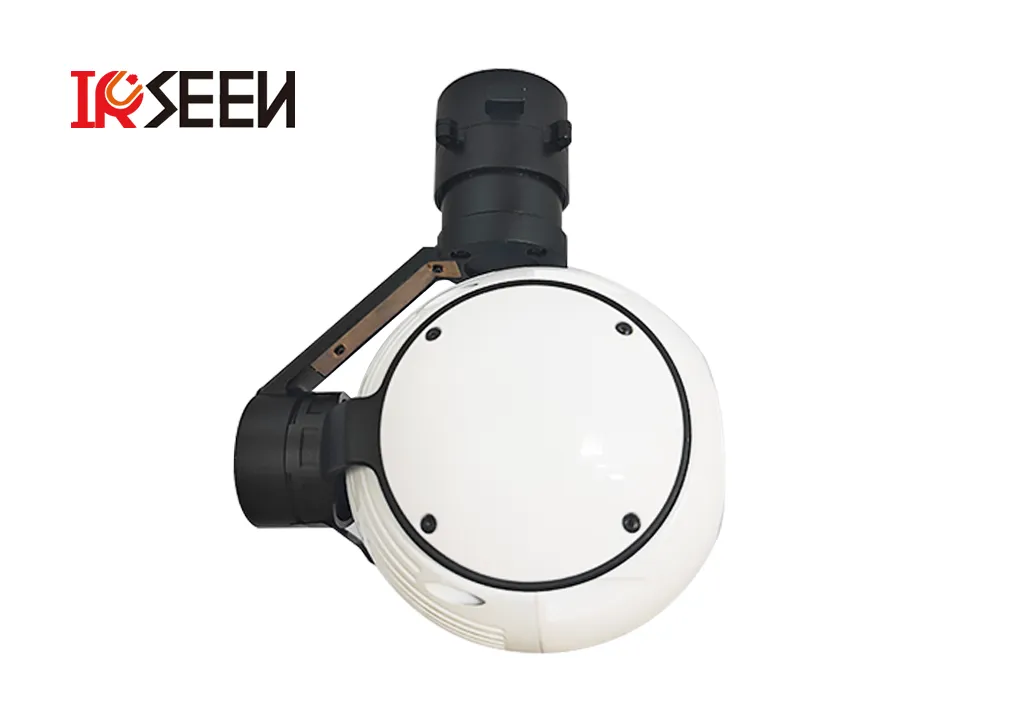

30x Tracking UAV Gimbal
(Model#FI-30)
The 30x tracking drone Gimbal is a cutting-edge imaging technology designed specifically for aerial missions and tracking applications. This universal joint is widely used with its advanced tracking module and zoom technology, making it a must-have tool for professionals in this field. It integrates deep convolutional artificial neural network visual detection and tracking algorithms and advanced driving control algorithms. It adopts mechanical stabilization technology with an increase in stability accuracy of ± 0.02 °, which can achieve rapid detection and tracking of moving targets and has high tracking stability.
- IRSEEN
- Shenyang, China
- 10 working days
- 100 sets per month (Looking for distributors)
- Information
- Download
Product highlights:
1. Quick disassembly structure design: The universal joint adopts a quick disassembly structure design, which is easy to install.
2. 30x continuous optical zoom: With 30x continuous optical zoom, this universal joint allows you to capture detailed and high-quality images from various distances. From remote tracking to close up inspection, this zoom function brings every detail into focus.
3. Artificial intelligence pedestrian and vehicle recognition function: This universal joint is equipped with advanced artificial intelligence technology and built-in pedestrian and vehicle recognition function. This intelligent function can achieve fast and accurate target positioning, making it very suitable for security and tracking detection purposes.
4. 360 ° rotation: The universal joint has a 360 ° rotation function, providing full panoramic coverage. There are no blind spots or restrictions, ensuring that you capture every angle and perspective you need.
5. Small size, light weight, and low power consumption: This universal joint is designed specifically for aerial platforms, with a compact structure and light weight. It has been optimized for portability and can be seamlessly integrated into various drone systems. In addition, it consumes the least power, making it highly efficient for extended tasks.
Parameters
MODEL | FI-30 | ||
System specification | System type | Gyro stability | |
Weight | 940g | ||
Stable system | Platform type | Tri-axis | |
Azimuth | 360°rotation | ||
pitch | -90°～+30° | ||
Roll | -45°～+45° | ||
Maximum search angular velocity | ≥100°/s | ||
Stability accuracy | 0.1mrad(1°/2HZ) | ||
Angular position accuracy | ≤0.3° | ||
Electro Optical (30X) | Resolution and frame rate | SONY7520 1920×1080 @60fps | |
FOV | 63°×35°～2.3°×1.3° | ||
Focus | f=4.3mm～129mm | ||
Ranging | Laser Ranging | None | |
Tracking module | Frame rate | 60Hz | |
Tracking speed | ±48 Pixel/frame | ||
System external interface | Control | RS232、NET | |
Video output | NET | ||
Power supply | Power | 12～28V | |
Power consumption | Av≤15W，Max≤30W | ||
Environmental conditions | Operating temperature | -10℃～+50℃ | |
Storage temperature | -40℃～+60℃ | ||
Dimensions
Zoom Image：
How it works:
The working principle of the 30x tracking drone Gimbal combines advanced algorithms and innovative engineering, providing excellent tracking capabilities. It adopts mechanical stability enhancement technology to ensure accurate and stable tracking performance.
By integrating deep convolutional artificial neural network visual detection and tracking algorithms, this gimbal can quickly detect and track moving targets. Advanced driving control algorithms further improve the accuracy and efficiency of the tracking process.
Frequently asked questions:
Q: Is the installation process complex?
A: Not at all. The universal joint adopts a quick disassembly structure design, making installation quick and convenient.
Q: Can I take detailed images from long distances?
A: Of course. Using a 30x continuous optical zoom, high-quality images can be captured even at long distances.
Q: Does the universal joint have 360 ° rotation capability?
A: Yes, the universal joint provides 360 ° periodic rotation, complete coverage, and no blind spots.
Q: Will the universal joint add a lot of weight to my drone system?
A: No, the design of the universal joint is lightweight and compact, ensuring minimal impact on the overall weight of the drone system.
Q: How efficient is the universal joint in terms of power consumption?
A: The design of the universal joint considers low power consumption, maximizing the efficiency of extended tasks.
