Hexacopter drone
Minitype UAV is a portable small unmanned aerial vehicle (Minitype UAV) that can be quickly removed and assembled. The fuselage structure of WZ-866S is made of carbon fiber. Frame, upper cover, support arm, landing gear, electric frame and so on are light and strong structure design.
- Information
Hexacopter drone
Introduction

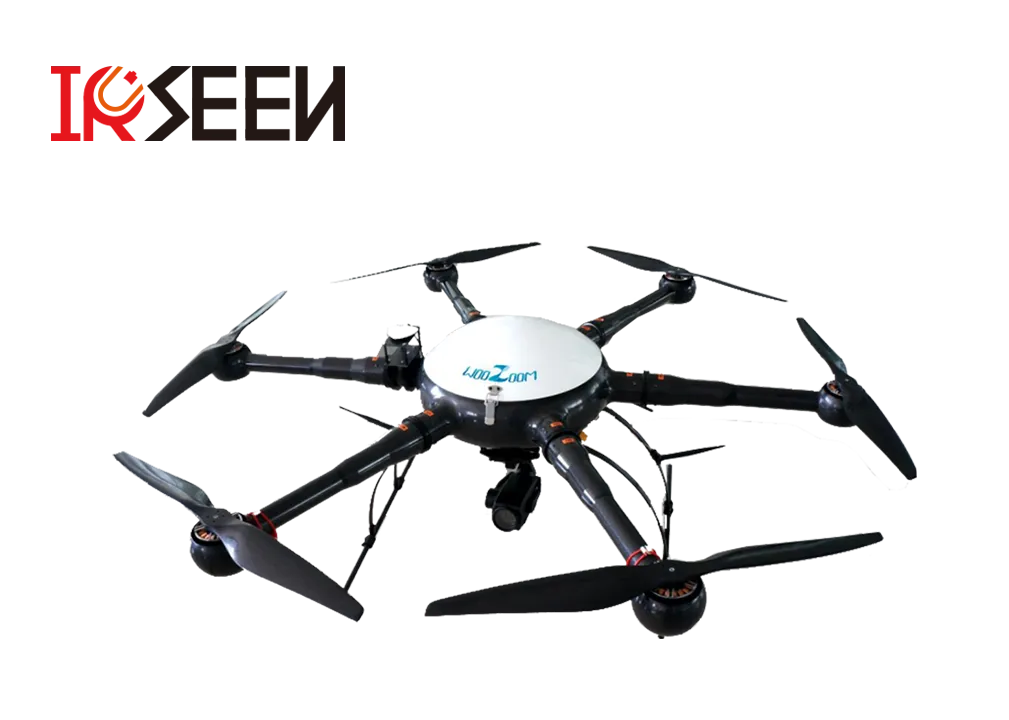

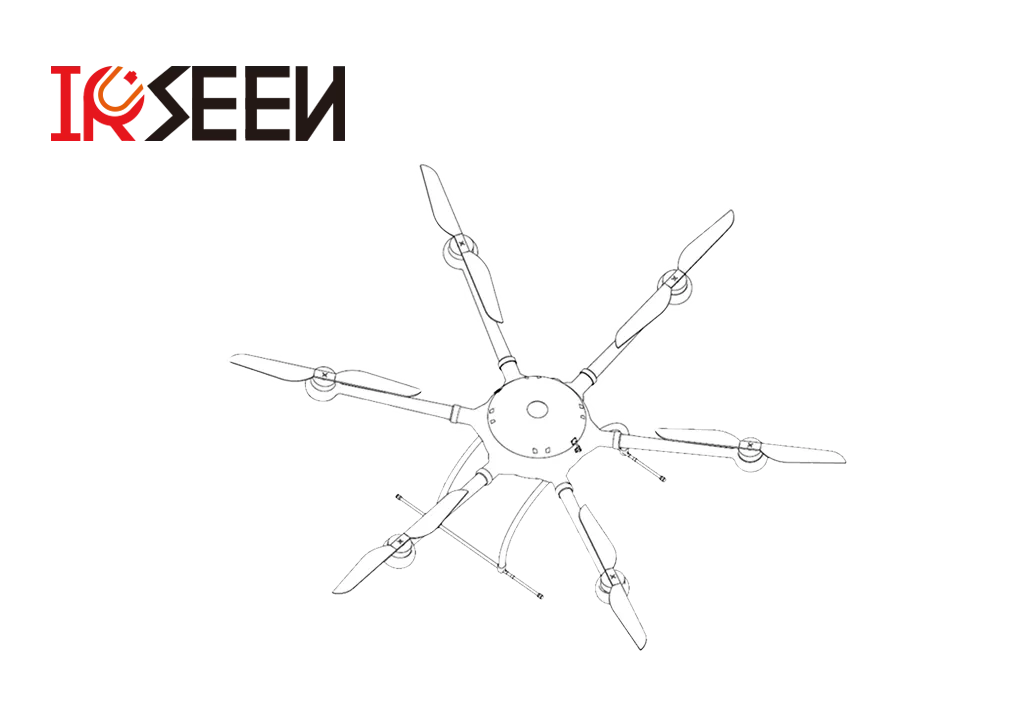

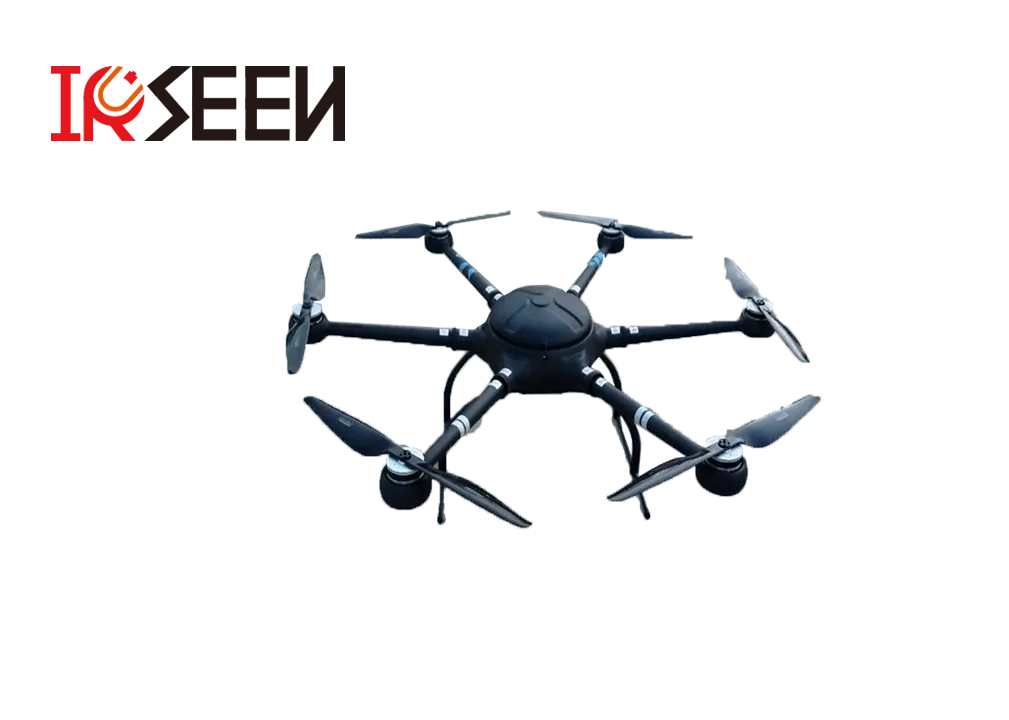

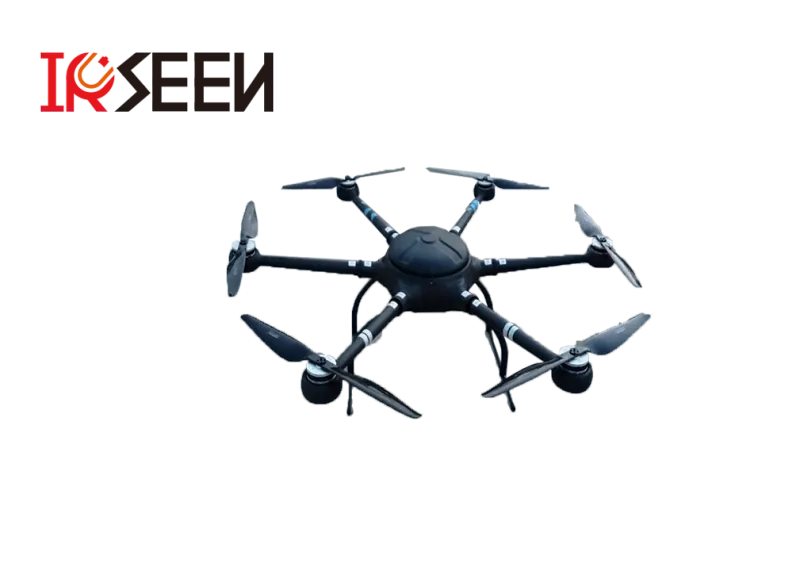

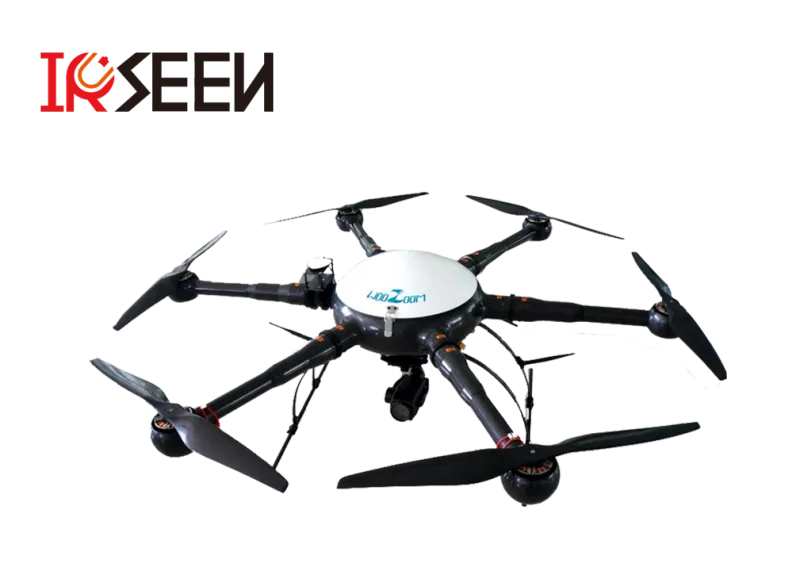

Minitype UAV is a portable small unmanned aerial vehicle (Minitype UAV) that can be quickly removed and assembled. The fuselage structure of WZ-866S is made of carbon fiber. Frame, upper cover, support arm, landing gear, electric frame and so on are light and strong structure design. Six of the arms adopt plug-in structure, fast and portable storage; Small storage size, convenient transportation. The WZ-866S hexacopter unmanned aerial vehicle system has a lift-off weight of less than 15 kg with a maximum outline size of less than 1820 mm.
The WZ-866S deploys its body in a matter of minutes and waits only a few minutes for GPS satellite positioning. It is a small UAV operating equipment with a wide range of uses.
Features
Maximum size 1250*1008*500(mm)
The mission payload is 5.5kg
Hover time 47min
Maximum takeoff weight 15.2kg
The maximum speed is 54km/h
Parameters
wheelbase | 1250mm |
Empty weight (without battery) | 5kg |
Standard take-off weight | 15 kg |
Cruising speed | 8m/s |
propeller | 24 inch high strength carbon fiber |
No-load hover time | 60 min |
No-load mileage | 35km |
Flight speed | 10 m/s |
Hover accuracy | Horizontal: 1 m, vertical: 0.2 m |
Mode of flight | Semi-automatic/fully automatic |
Operating ambient temperature | -20 ℃ to +60 ℃ |
Working radius | 5km |
wheelbase | 1250mm |
Empty weight (without battery) | 5kg |
Standard take-off weight | 15 kg |
Cruising speed | 8m/s |
propeller | 24 inch high strength carbon fiber |
No-load hover time | 60 min |
No-load mileage | 35km |
Flight speed | 10 m/s |
Hover accuracy | Horizontal: 1 m, vertical: 0.2 m |
Mode of flight | Semi-automatic/fully automatic |
Operating ambient temperature | -20 ℃ to +60 ℃ |
Working radius | 5km |
NETD is the noise equivalent temperature difference of the infrared camera, which is one of the main indicators of infrared detectors. NETD is an objective evaluation index for the sensitivity of a thermal imaging system and can be used to predict the detection distance of a small temperature difference point target. The NETD value of the ZXIR infrared camera is less than 50mk. The smaller the NET...more
