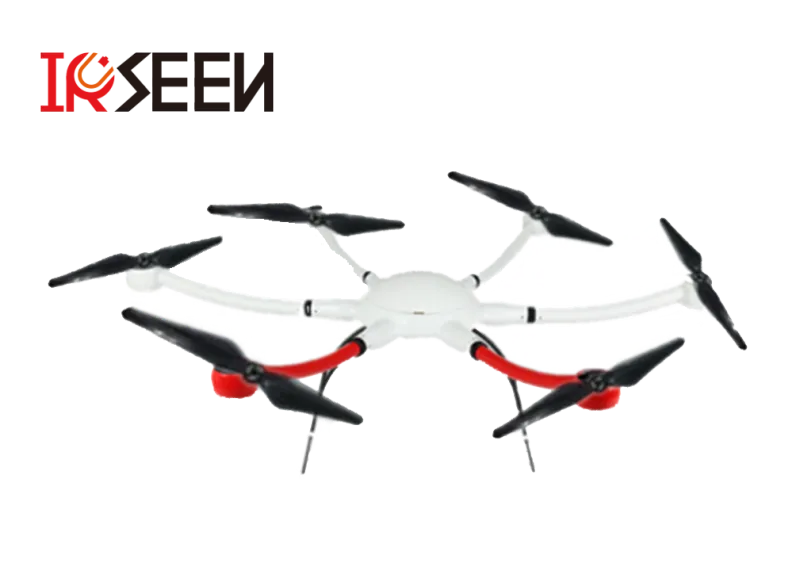

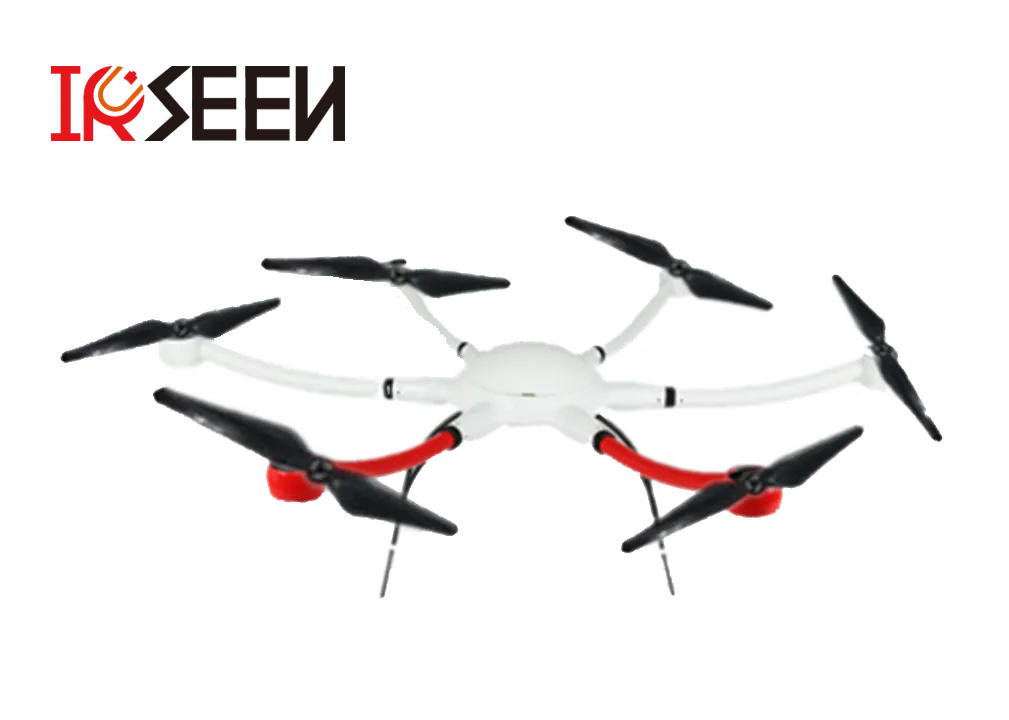

Six-axis multi-rotor UAV
Introduction
IRSEEN has developed a small portable drone that can be quickly disassembled. The fuselage structure is made of carbon fiber materials. Frame, upper cover, support arm, landing gear, electric frame and so on are light and strong structure design. Six of the arms adopt plug-in structure, fast and portable storage; Small storage size, convenient transportation. The maximum take-off weight is 25kg and the maximum external dimension is less than 2340mm. It takes only a few minutes to deploy the fuselage, and it can wait for GPS positioning within one minute when powered on. It is a small UAV operating equipment with wide use.
Application field
Pipeline inspection, power inspection, infrastructure inspection, remote sensing surveying and mapping, public security fire protection, aerial reconnaissance, anti-terrorism, forensics, geological survey, film and television aerial photography, communication relay, environmental protection, meteorological detection, disaster monitoring, aerial survey and other industries and fields.
Product characteristics:
Max size 1820*1820*500(mm)
2340*2340*500(mm)
Maximum load 6kg
Hover time 50-65 minutes
Maximum wind resistance level 6
The maximum flight speed is 15m/s
The maximum flight altitude is 2000 meters
Parameters
Maximum fuselage expansion size | 2340*2340*500(mm) (with paddle) | Maximum flight speed | 15m/s |
Maximum flight altitude | Less than 2000 m | ||
Fuselage wheelbase | 1600(mm) | Maximum altitude | 5000m |
Dynamic system | electric | Normal cruising speed | 3-8m/s |
Hover accuracy (horizontal) | + / - 1.5 m | Hover accuracy (vertical) | + / - 0.5 m |
Maximum take-off weight | 25kg | Maximum mission load | 10kg |
Data transmission distance | 10km | Rated duty load | 3kg |
Hover time | 68-78 minutes | Battery capacity | Two pieces of 22,000 or two pieces of 25,000 |
Maximum wind resistance | Wind force 6 | Binocular obstacle avoidance system | 20 m effective detection range |
Runaway protection | An uncontrolled return or landing | One-button takeoff and landing | support |
Low voltage protection | support | Super high range protection | support |
